6CTA8.3-GM155 Auxiliary Engine Parts

For the same model of engine, Cummins havedifferent SO (Shop Order) number, which have some tiny different to match therequirement from different customers, but most of the major components are thesame in the same model, so we randomly choose one of the SO number parts listto show on our website for your reference, if you need accurate parts list,please contact PartMac with your engine name plate, engine serial number orengine SO number, then our sales team will go back to you with parts catalogmatching to your engine. We provide maintenance manual, operation manual aswell technical support, we can also provide on-site engineer services to do therepair and maintenance works if customers pay all the relevant costs, pleasefeel free to contact us if you have any other questions.

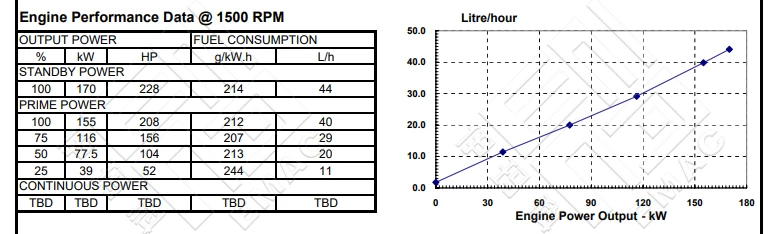

Technical Specifications

Engine Model:	6CTA8.3-GM155
Engine Type:	6 Cylinders
Displacement:	8.3 L
Rated Speed:	1500 RPM
Rated Power / Speed:	155 kW @ 1500 RPM
Peak Torque:	214 g / kW.h @ 1500 RPM
Classification:	N/A
Aspiration Method:	Turbocharged & Water-Air Intercooler
Emission Standard:	N / A
*Bore stroke:**	114 mm * 135 mm
*Packing Size(L W * H):**	1494 mm * 796 mm * 1228 mm
Wet Weight:	637 kg
Lead Time:	15-30 Working Days
Payment Terms:	T/T ,L/C

Coming Soon

coming soon

Search by Part No. or Part Name

Click Kit Name to Check Part List

CLEANER,AIR
NO	Part NO	Part Name	QTY	REMARKS
1	3281232	BRACKET，AIR CLEANER	1	——
2	3281238	CLEANER，AIR	1	——
3	3281239	CAP，AIR CLEANER	1	——
4	3281240	STRAP，AIR CLEANER	2	——
5	C140311	CLAMP，T BOLT	1	——
6	C3030788	HOSE，HUMP	1	——
7	C3415548	CLAMP，T BOLT	2	——
8	C3903990	SCREW,HEX FLANGE HEAD	2	——
9	Q1840820	SCREW,HEX FLANGE HEAD CA	4	——
——END——

INDICATOR，AIR RESTRIC
NO	Part NO	Part Name	QTY	REMARKS
1	178957	INDICATOR，RESTRICTION	1	——
——END——

DATAPLATE
NO	Part NO	Part Name	QTY	REMARKS
1	C3415394	SCREW,DRIVE	2	——
2	C3415600	DATAPLATE	1	——
3	C3974406	Decal	1	——
4	C3975443	Decal	1	——
——END——

BLOCK,ENGINE
NO	Part NO	Part Name	QTY	REMARKS
1	C3008470	PLUG，PIPE	1	——
2	C3900257	DOWEL, PIN	2	——
3	C3901590	BEARING，MAIN	7	——
4	C3901846	DOWEL,PIN	4	——
5	C3901969	PLUG，EXPANSION	1	——
6	C3907177	SEAL，RECTANGULAR	6	——
7	C3916840	BEARING,MAIN	6	——
8	C3918986	CRANKSHAFT,ASSEMBLY TL	1	——
9	C3904483	DOWEL, PIN	1	——
10	C3917320	CRANKSHAFT，ENGINE	1	——
11	C3918776	GEAR，CRANKSHAFT	1	——
12	C3926048	SEAL，O RING	1	——
13	C3926798	BEARING，CRANKSHAFT	1	——
14	C3928031	NOZZLE，PISTON COOLING	12	——
15	C3931623	TAPPET,VALVE	12	——
16	C3939313	BLOCK,CYLINDER	1	——
17	C143066	PLUG，EXPANSION	2	——
18	C3004258	PLUG，EXPANSION	4	——
19	C3905401	PLUG,EXPANSION	4	——
20	C3916369	SCREW，HEX FLANGE HEAD	14	——
21	C3936058	CAP，MAIN BEARING	7	——
22	C3939311	BLOCK，CYLINDER	1	——
23	C3939311A	BLOCK,ENGINE CYLINDER	1	——
24	C3938058	CASTING，CYLINDER BLOC	1	——
25	C3943199	BUSHING	7	——
26	C3948095	LINER，CYLINDER	6	——
27	CS 923 E	DRAINCOCK	1	——
——END——

PLUMBING,CYL BLK LBC
NO	Part NO	Part Name	QTY	REMARKS
1	C3678921	PLUG，THREADED	1	——
2	C3678912	SEAL，O RING	1	——
3	C3678922	PLUG，THREADED	1	——
4	C3678923	PLUG，THREADED	5	——
5	C3678924	PLUG，THREADED	1	——
6	C3678925	SEAL，O RING	1	——
——END——

PLUMBING,CYL BLK COOLAN
NO	Part NO	Part Name	QTY	REMARKS
1	C3008468	PLUG, PIPE	1	——
2	C3008469	PLUG, PIPE	2	——
——END——

HOUSING，FRONT GEAR
NO	Part NO	Part Name	QTY	REMARKS
1	3944293	GASKET，GEAR HOUSING	1	——
2	C3907998	SCREW, ROUND HEAD CAP	2	——
3	C3913995	HOUSING,TIMING PIN	1	——
4	C3903924	PIN,TIMING	1	——
5	C3904849	RING,RETAINING	1	——
6	C3913994	SEAL，O RING	1	——
7	C3919683	HOUSING,TIMING PIN	1	——
8	C3915772	SEAL，RECTANGLE	1	——
9	C3938086	HOUSING，GEAR	1	——
10	C3943885	SCREW，HEX FLANGE HEAD	3	——
11	Q1840820-0H1-J1	SCREW，HEX FLANGE HEAD	3	——
——END——

INDICATOR，AIR RESTRIC
NO	Part NO	Part Name	QTY	REMARKS
1	3970886	GASKET,BREATHER	1	——
2	C3901249	SCREW,HEX FLANGE HEAD	1	——
3	C3907741	CLIP	1	——
4	C3909669	TUBE,BREATHER	1	——
5	C3912072	SCREW,SELF TAPPING MET	1	——
6	C3918616	HOSE,PLAIN	1	——
7	C3930827	HOSE，PLAIN	1	——
8	C3935113	CONNECTION,VENT	1	——
9	C3936331	SEAL，RECTANGULAR RING	1	——
10	C3991306	SCREW HEX FLANGE HEAD	6	——
11	C4063520	PLATE，COVER	1	——
12	C70622	CLIP	1	——
13	D3937613	CLAMP,HOSE	2	——
14	Q67226	CLAMP,SPRING HOST	1	——
——END——

PLUMBING,COO HTR STG AID
NO	Part NO	Part Name	QTY	REMARKS
1	C3008469	PLUG, PIPE	1	——
——END——

DAMPER,VIBRATION
NO	Part NO	Part Name	QTY	REMARKS
1	C3906733	SCREW,HEX FLANGE HEAD	4	——
2	C3925567	DAMPER，VIBRATION	1	——
——END——

DRIVE，FRT GR TR ACCES
NO	Part NO	Part Name	QTY	REMARKS
1	3938655	GASKET，ACC DRIVE COVE	1	——
2	C3901249	SCREW,HEX FLANGE HEAD	2	——
3	C3914868	Plate,Cover	1	——
——END——

ACCESSORIES,ELECTRICAL
NO	Part NO	Part Name	QTY	REMARKS
1	3068915	BRACKET，MAGNETIC SWIT	1	——
2	3916302	SWITCH，MAGNETIC	1	——
3	Q1840616-0H1	SCREW，HEX FLANGE HEAD	2	——
4	Q32006	NUT,HEXAGON FLANGE	2	——
——END——

THERMOSTAT
NO	Part NO	Part Name	QTY	REMARKS
1	3940632	THERMOSTAT	1	——
——END——

LOCATION，ALTERNATOR
NO	Part NO	Part Name	QTY	REMARKS
1	C3415692	SUPPORT，ALTERNATOR	1	——
2	C3901249	SCREW,HEX FLANGE HEAD	1	——
3	C3902460	SCREW，HEX FLANGE HEAD	1	——
4	C3944312	BRACER，ALTERNATOR	1	——
5	Q1841030	SCREW,HEX FLANGE HEAD CA	3	——
6	Q18412120-0H1	SCREW，HEX FLANGE HEAD	1	——
7	Q32012	NUT,HEXAGON FLANGE	1	——
——END——

SUPPORT，FRONT ENGINE
NO	Part NO	Part Name	QTY	REMARKS
1	C3415686	SUPPORT，FRONT ENGINE	1	——
2	Q1841290-0H1	SCREW,HEX FLANGE HEAD	4	——
——END——

DEVICE，SIGNAL GENERAT
NO	Part NO	Part Name	QTY	REMARKS
1	C3967252	SENSOR,SPEED	1	——
——END——

DRIVE，FAN
NO	Part NO	Part Name	QTY	REMARKS
1	C3415603	SUPPORT，FAN	1	——
2	C3926855	PULLEY，FAN	1	——
3	Q1841050	SCREW,HEX HEAD CAP	4	——
——END——

DRIVE,FAN
NO	Part NO	Part Name	QTY	REMARKS
1	C3903990	SCREW,HEX FLANGE HEAD	4	——
——END——

FILTER，FUEL
NO	Part NO	Part Name	QTY	REMARKS
1	c3906694	SEAL，RECTANGLE	1	——
2	C3906695	SEAL，RECTANGLE	1	——
3	C3925955	ADAPTER,FILTER HEAD	1	——
4	C3930942	FILTER,FUEL	1	——
5	C3931063	FILTER,FUEL	1	——
6	C3936315	HEAD,FUEL FILLER	1	——
7	Q351B16-3H1	NUT,HEXAGON	1	——
——END——

PLUMBING，FUEL FILTER
NO	Part NO	Part Name	QTY	REMARKS
1	C3905860	SCREW,BANJO CONNECTOR	1	——
2	C3911446	SCREW,BANJO CONNECTOR	1	——
3	C3939570	Screw,Captive washer cap	1	——
4	C3935171	WASHER，SEALING	2	——
5	C3969649	TUBE,FUEL SUPPLY	1	——
——END——

HOUSING,FLYWHEEL
NO	Part NO	Part Name	QTY	REMARKS
1	A3900629	SCREW,HEX FRANGE HEAD CA	2	——
2	A3909670	CLIP	1	——
3	A3910248	PLUG,O RING	1	——
4	A3910260	SEAL,O RING	1	——
5	A3912473	SEAL,RECTANGULAR RING	1	——
6	C3008469	PLUG, PIPE	1	——
7	C3357700	COVER,REAR	1	——
8	3970548	SEAL,OIL	1	——
9	C3933384	COVER,REAR	1	——
10	C3415320	HOUSING,FLYWHEEL	1	——
11	C3908095	Plate,Cover	1	——
12	C3939353	GASKET,CARRIER	1	——
13	C3991306	SCREW HEX FLANGE HEAD	8	——
14	Q1841240-0H1	SCREW,HEX HEAD CAP	12	——
——END——

COUPLING，FUEL PUMP
NO	Part NO	Part Name	QTY	REMARKS
1	C3282372	STUD	4	——
2	C3415412	GEAR，FUEL PUMP	1	——
3	C3415428	BRACE，FUEL PUMP	1	——
4	C3415429	BRACE，FUEL PUMP	1	——
5	C3415492	BRACE，FUEL PUMP	1	——
6	C3415598	SPACER	2	——
7	C3415687	BRACE，FUEL PUMP	1	——
8	C3900589	NUT，HEXAGON FLANGE	1	——
9	C3903990	SCREW,HEX FLANGE HEAD	2	——
10	C3924605	SEAL RECTANGULAR RING	1	——
11	C3926722	SEAL，RECTANGULAR RING	1	——
12	Q151B1030	SCREW,HEXAGON HEAD	1	——
13	Q1840845-0H1	SCREW,HEX FRANGE HEAD CA	1	——
14	Q1840890-0H1	SCREW,HEX FRANGE HEAD CA	2	——
15	Q1841035	SCREW,HEX FRANGE HEAD CA	1	——
16	Q32010	NUT,HEXAGON FRANGE	4	——
17	Q340B10	NUT,HEXAGON	1	——
——END——

PUMP,BASE FUEL
NO	Part NO	Part Name	QTY	REMARKS
1	C3971285	PLUG,CONNECTOR	1	——
2	C3972878	PUMP,FUEL INJECTION	1	——
——END——

ACCESSORIES，FUEL SUPP
NO	Part NO	Part Name	QTY	REMARKS
1	C3415661	PUMP,FUEL TRANSFER	1	——
2	C3909310	SCREW，HEX FLANGE HEAD	2	——
3	C3916361	SCREW,BANJO CONNECTOR	1	——
4	C3918539	TUBE，FUEL SUPPLY	1	——
5	C3935171	WASHER，SEALING	2	——
6	C3939258	GASKET，COVER PLATE	1	——
——END——

PLUMBING,FUEL
NO	Part NO	Part Name	QTY	REMARKS
1	11N12-04125	CONNECTOR,BANJO	1	——
2	C3282059	CLIP	1	——
3	C3282141	SCREW,BANJO CONNECTOR	6	——
4	C3863988	WASHER，SEALING	2	——
5	C3903380	SEAL,BANJO CONNECTOR	6	——
6	C3918188	WASHER，SEALING	2	——
7	C3920595	MANIFOLD,FUEL	1	——
8	C3924726	VALVE，CHECK	1	——
——END——

FLYWHEEL
NO	Part NO	Part Name	QTY	REMARKS
1	C3415350	FLYWHEEL	1	——
——END——

MOUNTING.FLYWHEEL
NO	Part NO	Part Name	QTY	REMARKS
1	C3415323	SCREW,HEX HEAD CAP	4	——
2	C3415323	SCREW,HEX HEAD CAP	4	——
3	C3900269	Washer,Plain	4	——
4	C3900269	Washer,Plain	4	——
——END——

ACCESSORIES，FUEL SUPP
NO	Part NO	Part Name	QTY	REMARKS
1	Q1840816-0H1	SCREW,HEX FLANGE HEAD	2	——
——END——

COVER,FRONT GEAR
NO	Part NO	Part Name	QTY	REMARKS
1	C3938077	NUT，LOCK	5	——
2	C3942535	SEAL，OIL	1	——
3	3921927	SEAL,OIL	1	——
4	C3941786	CARRIER，SEAL	1	——
5	C3943813	COVER，GEAR	1	——
6	Q1840816-0H1	SCREW,HEX FLANGE HEAD	13	——
7	Q1840850-0H1-J1	SCREW,HEX HEAD CAP	11	——
——END——

PLUMBING,CABIN HEATER
NO	Part NO	Part Name	QTY	REMARKS
1	C3008469	PLUG, PIPE	2	——
——END——

BRACKET，LIFTING
NO	Part NO	Part Name	QTY	REMARKS
1	C3901249	SCREW,HEX FLANGE HEAD	2	——
2	C3906440	BRACKET,LIFTING	1	——
3	C3907861	BRACKET,LIFTING	1	——
4	Q150B1225	SCREW,HEXAGON HEAD CAP	2	——
——END——

LABELING，ENGINE
NO	Part NO	Part Name	QTY	REMARKS
1	C3415381	LABEL,ENGINE	1	——
2	C3415461	DECAL	1	——
——END——

LABEL
NO	Part NO	Part Name	QTY	REMARKS
1	C3415403	DECAL	1	——
——END——

COOLER，ENGINE OIL
NO	Part NO	Part Name	QTY	REMARKS
1	C3008468	PLUG, PIPE	1	——
2	C3008469	PLUG, PIPE	1	——
3	C3906619	PLUG, PIPE	2	——
4	C3918174	GASKET,OIL COOLER CORE	1	——
5	C3929011	GASKET,LUB OIL CLR COV	1	——
6	C3931084	PLUG，THREADED	1	——
7	C3930910	PLUG，PIPE	1	——
8	C3930911	SEAL，O RING	1	——
9	C3934159	HEAD，LUB OIL FILTER	1	——
10	C3934410	VALVE，BYPASS	1	——
11	C3945967	PLUNGER，PRS REGULATOR	1	——
12	C3966976	SCREW,HEX FLANGE HEAD	11	——
13	C3970655	SPRING,COMPRESSION	1	——
14	C3974815	CORE,COOLER	1	——
——END——

FILTERMLUBRICATING OIL
NO	Part NO	Part Name	QTY	REMARKS
1	3401544	ELEMENT,LUB OIL FILTER	1	——
——END——

GAUGE,OIL LEVEL
NO	Part NO	Part Name	QTY	REMARKS
1	C3279104	TUBE,OIL GAUGE	1	——
2	C3900955	PLUG,EXPANSION	1	——
3	C3906757	DIPSTICK	1	——
——END——

PUMP，LUBRICATING OIL
NO	Part NO	Part Name	QTY	REMARKS
1	C3966840	PUMP，LUBRICATING OIL	1	——
2	Q150B0830	SCREW,HEXAGON HEAD CAP	4	——
——END——

MANUAL
NO	Part NO	Part Name	QTY	REMARKS
1	C3666343	MANUAL	1	——
——END——

ARRANGEMENT,OIL FILL
NO	Part NO	Part Name	QTY	REMARKS
1	101322	CAP，FILLER	1	——
2	3905408	TUBE，OIL FILL	1	——
——END——

COVER,HAND HOLE
NO	Part NO	Part Name	QTY	REMARKS
1	C3903463	COVER，ACCESS HOLE	1	——
2	C3903475	SEAL，RECTANGLE	1	——
——END——

PAN，OIL
NO	Part NO	Part Name	QTY	REMARKS
1	C3902425	SEALING WASHER	1	——
2	C3910960	PLAIN WASHER	1	——
3	C3914013	PAN,OIL	1	——
4	C3920400	SCREW,HEX HEAD CAP	32	——
5	C3920773	WASHER,SEALING	1	——
6	C3924147	PLUG，THREADED	1	——
7	C3924148	PLUG，THREADED	1	——
8	C3926865	SPACER,MOUNTING	2	——
9	C3927611	BRACE,TUBE	1	——
10	C3928828	CONNECTION，OIL SUCTIO	1	——
11	C3938160	GASKET，OIL PAN	1	——
12	C3939352	GASKET,OIL SUC CONNECT	1	——
13	Q1840616-0H1	SCREW，HEX FLANGE HEAD	2	——
14	Q1840620	SCREW,HEX FLANGE HEAD	1	——
15	Q1840630	SCREW,HEX FLANGE HEAD	2	——
16	Q32006	NUT,HEXAGON FLANGE	1	——
——END——

PERFORMANCE PARTS
NO	Part NO	Part Name	QTY	REMARKS
1	C3008464	PLUG，PIPE	1	——
2	C3008466	PLUG ，PIPE	1	——
3	C3008468	PLUG, PIPE	1	——
4	C3415430	GEAR，CAMSHAFT	1	——
5	C3415501	GASKET，CYLINDER HEAD	1	——
6	C3901383	ROD，ENGINE CONNECTING	6	——
7	C3901430	BEARING,CONNECTION ROD	12	——
8	C3902332	KEY,PLAIN WOODRUFF	1	——
9	C3902425	SEALING WASHER	2	——
10	C3909886	SEAL，INJECTOR	6	——
11	C3910279	CLAMP,INJECTOR	6	——
12	C3917729	SCREW，HEX FLANGE HEAD	12	——
13	C3919918	RING,COMPRESSION PISTO	6	——
14	C3920692	RING,RETAINING	12	——
15	C3921919	RING,OIL PISTON	6	——
16	C3922686	RING,COMPRESSION PISTO	6	——
17	C3923478	CAMSHAFT	1	——
18	C3923537	PISTON，ENGINE	6	——
19	C3924148	PLUG，THREADED	2	——
20	C3927155	SUPPORT,CAMSHAFT THRUST	1	——
21	C3934046	PIN,PISTON	6	——
22	C3960043	SCREW,HEX FLANGE HEAD	14	——
23	C4931026	HEAD,CYLINDER	1	——
24	3901177	COLLET,VALVE	24	——
25	3921444	VALVE,EXHAUST	6	——
26	3924492	VALVE,INTAKE	6	——
27	3927642	SEAL，VALVE STEM	12	——
28	C3912976	RETAINER，VALVE SPRING	12	——
29	C3916588	SPRING,VALVE	6	——
30	C3936180	HEAD,CYLINDER	1	——
31	3908830	INSERT,VALVE	6	——
32	3925863	GUIDE,VALVE STEM	12	——
33	3928174	INSERT,VALVE	6	——
34	C3900965	PLUG,EXPANSION	2	——
35	C3914035	PLUG,EXPANSION	5	——
36	C3920443	PLUG,EXPANSION	1	——
37	C3936154	HEAD,CYLINDER	1	——
38	C3968118	HEAD,CYLINDER	1	——
39	C3968118A	HEAD,CYLINDER	1	——
40	3936152	HEAD，CYLINDER	1	——
41	C3991085	SPRING，VALVE	6	——
42	D3919602	INJECTOR	6	——
43	Q150B0822	SCREW,HEXAGON HEAD CAP	2	——
44	Q1840880	SCREW,HEX FLANGE HEAD	6	——
——END——

PLUMBING,CYHEAD COOLANT
NO	Part NO	Part Name	QTY	REMARKS
1	C3008464	PLUG，PIPE	1	——
2	C3008468	PLUG, PIPE	1	——
3	C3912900	PLUG ,EXPANSION	1	——
——END——

TURBOCHARGER
NO	Part NO	Part Name	QTY	REMARKS
1	C3755843	GASKET,TURBOCHARGER	1	——
2	C3818823	STUD	4	——
3	C3818824	NUT,HEXAGON FLANGE	4	——
4	C4050236	TURBOCHARGER	1	——
——END——

PLUMBING,INJECTOR
NO	Part NO	Part Name	QTY	REMARKS
1	C3415639	TUBE，FUEL INJECTOR	1	——
——END——

LEVER，ROCKER
NO	Part NO	Part Name	QTY	REMARKS
1	C3905194	ROD，PUSH	12	——
2	C3919677	MANIFOLD，OIL	1	——
3	C3934921	LEVER,ROCKER	6	——
——END——

VENT，ENGINE COOLANT
NO	Part NO	Part Name	QTY	REMARKS
1	C3629097	ELBOW,MALE APAPTER	1	——
2	C3974262	VALVE,CHECK	1	——
3	C3911901	VALVE,CHECK	1	——
4	C3911925	COUPLING，PLAIN HOSE	1	——
——END——

SENSOR，OIL PRESSURE
NO	Part NO	Part Name	QTY	REMARKS
1	3846N06-010	SWITCH,OIL PRESSURE	1	——
——END——

SENSOR，TEMPERATURE
NO	Part NO	Part Name	QTY	REMARKS
1	C3979176	SENSOR,TEMPERATURE	1	——
——END——

MOUNTING,STARTING MOTOR
NO	Part NO	Part Name	QTY	REMARKS
1	C3908321	SCREW，TWELVE POINT HE	3	——
——END——

SHIELD,DEBRIS
NO	Part NO	Part Name	QTY	REMARKS
1	C3918113	SHIELD，DUST	1	——
——END——

PAINT
NO	Part NO	Part Name	QTY	REMARKS
1	C3911314	DATAPLATE	1	——
——END——

MOTOR,STARTING
NO	Part NO	Part Name	QTY	REMARKS
1	C3976618	MOTOR,STARTING	1	——
——END——

ARRANGEMENT,TURBOCHARGER
NO	Part NO	Part Name	QTY	REMARKS
1	C3415544	CLAMP,T BOLT	4	——
2	C3914708	LOCKPLATE	12	——
3	C3914942	TUBE，AIR	1	——
4	C3929537	SCREW,HEX HEAD CAP	12	——
5	C3970407	HOSE,PLAIN	2	——
——END——

MANIFOLD,EXHAUST
NO	Part NO	Part Name	QTY	REMARKS
1	3906741	MANIFOLD，EXHAUST	1	——
2	C3929012	GASKET,EXHAUST MANIFOL	6	——
——END——

AFTERCOOLER
NO	Part NO	Part Name	QTY	REMARKS
1	C3415334	DECAL	1	——
2	C3415552	DRAINCOCK	1	——
3	C3924731	AFTERCOOLER	1	——
4	D3936993	GASKET,INT MANIFOLD	1	——
5	Q1840825-J0	SCRAW, HEX FLA HEAD CAP	16	——
6	Q1840835-J0	SCREW，HEX FLANGE HEAD	2	——
——END——

PLUMBING,TURBOCHARGER
NO	Part NO	Part Name	QTY	REMARKS
1	C3285747	GASKET，OIL DRAIN	1	——
2	C3415347	CONNECTOR,FEMALE	2	——
3	C3037236	SEAL，O RING	1	——
4	C3415328	CONNECTOR,FEMALE	1	——
5	C3415471	HOSE，FLEXIBLE	1	——
6	C3924389	WASHER，SEALING	2	——
7	C3928629	CONNECTION，TUR OIL	1	——
8	C3926842	CONNECTION，TUBE OIL	1	——
9	C3928624	SEAL，O RING	2	——
10	Q1840820	SCREW,HEX FLANGE HEAD CA	2	——
——END——

COVER，VALVE
NO	Part NO	Part Name	QTY	REMARKS
1	3905449	SEAL,ROCKER LEVER COVE	1	——
2	C3902466	SEAL，RECTANGLE	1	——
3	c3902468	CAP，FILLER	1	——
4	C3910824	SEAL,O RING	6	——
5	C3922639	SCREW,HEX HEAD CAP	6	——
6	C3930903	COVER，VALVE	1	——
——END——

PLUMBING，AFTERCOOLER
NO	Part NO	Part Name	QTY	REMARKS
1	C145530	SEAL，O RING	2	——
2	C3906436	TUBE,WATER INLET	1	——
3	C3906439	PLATE，CLAMPING	1	——
4	C3908402	TUBE,WATER OUTLET	1	——
5	C3917394	CONNECTION,WATER	2	——
6	C3918611	HOSE，PLAIN	4	——
7	D3937613	CLAMP,HOSE	8	——
8	Q1840816-0H1	SCREW,HEX FLANGE HEAD	1	——
——END——

RESISTOR，CORROSION
NO	Part NO	Part Name	QTY	REMARKS
1	4058964	RESISTOR,CORROTION	1	——
2	C179901	VALVE，SHUTOFF	2	——
3	C179903	COUPLING，ELBOW HOSE	2	——
4	C3008469	PLUG, PIPE	2	——
5	C3415608	BUSHING，REDUCING PIPE	2	——
6	C3415680	SUPPORT,RESISTOR	1	——
7	C3910509	CLAMP，HOSE	4	——
8	C3966481	SUPPORT，FILTER	1	——
9	C3973898	DECAL	1	——
10	C3975596	HOSE,PLAIN	1	——
11	C3975597	HOSE,PLAIN	1	——
12	Q1841030	SCREW,HEX FLANGE HEAD CA	4	——
——END——

CONNECTION，WATER INLE
NO	Part NO	Part Name	QTY	REMARKS
1	C3415658	GASKET,CONNECTION	1	——
2	C3944720	CONNECTOR，WATER INLET	1	——
3	Q1840820	SCREW,HEX FLANGE HEAD CA	2	——
——END——

CONNECTION，WATER OUTL
NO	Part NO	Part Name	QTY	REMARKS
1	C3900631	SCREW,HEX FLANGE HEAD	2	——
2	C3944429	CONNECTOR，WATER OUTLE	1	——
——END——

TENSIONER，BELT
NO	Part NO	Part Name	QTY	REMARKS
1	C3282433	SCREW，HEX FLANGE HEAD	1	——
2	C3936213	TENSIONER,BELT	1	——
——END——

PUMP，WATER
NO	Part NO	Part Name	QTY	REMARKS
1	C3940386	SEAL，O RING	1	——
2	C3966841	PUMP,WATER	1	——
3	Q1840828	SCREW,HEX FRANGE HEAD CA	3	——
——END——

PULLEY，WATER PUMP DRI
NO	Part NO	Part Name	QTY	REMARKS
1	C3911620	BELT,V RIBBED	1	Random Items
——END——

CONNECTOR，TUBO EXHAUS
NO	Part NO	Part Name	QTY	REMARKS
1	C3008466	PLUG ，PIPE	1	——
2	C3415546	CLAMP，V BOLT	1	——
3	C3902460	SCREW，HEX FLANGE HEAD	4	——
4	C3910994	PIPE，EXHAUST OUTLET	1	——
5	C3917923	SUPPORT，MOUNTING	1	——
——END——

SEA WATER HEAT EXCHANGER
NO	Part NO	Part Name	QTY	REMARKS
1	ZSLG2.8-16-00H	SEA WATER HEAT EXCHANGER	1	——
2	Q67675B	CLAMP HOSE	4	——
3	KCCM30105004	SEA WATER HEAT EXCHANGER WATERINLET	1	——
4	KCCM30105003	TRANSITIONSTRAIGHTTUBE	1	——
5	KCCM30205011	TRANSITIONSTEELPIPE	1	——
6	Q67215	CLAMP HOSE	2	——
7	KCB20105003	OUTGASSINGTUBE	1	——
——END——

SEA PUMP
NO	Part NO	Part Name	QTY	REMARKS
1	Z3900415	SEAPUMP	1	——
——END——

ACCESSORIES，FUEL SUPP
NO	Part NO	Part Name	QTY	REMARKS
1	ESD5500E	CONTROL UNIT	1	Random Items
——END——

FUEL ROUGH FILTER
NO	Part NO	Part Name	QTY	REMARKS
1	KCB20101001	PART NAME	1	——
2	Q150B0820	SCREW，HEXAGONHEADCAP	2	——
3	Q150B0830	SCREW，HEXAGONHEADCAP	2	——
4	KCB20101004	PREFILTEROUTPIPELINE	1	——
5	KCB20101003	PREFILTERINTO THE PIPELINE	1	——
6	ZX0708F	FUEL ROUGH FILTER	1	——
——END——

DRIVE WHEEL PROTECTOR
NO	Part NO	Part Name	QTY	REMARKS
1	Q150B0825	SCREW，HEXAGONHEADCAP	2	——
2	Q150B1215	SCREW，HEXAGONHEADCAP	2	——
3	Q150B1025	SCREW，HEXAGONHEADCAP	2	——
4	KCB20107001	SUPPORT，MOUNTING	1	——
5	Q150B1015	SCREW，HEXAGONHEADCAP	2	——
6	KPFW(5)-D101	DRIVEWHEELPROTECTOR	1	——
7	Q150B1025	SCREW，HEXAGONHEADCAP	2	——
8	KCB20107002	SUPPORT，MOUNTING	2	——
——END——

VENTING CORRUGATED PIPES
NO	Part NO	Part Name	QTY	REMARKS
1	Q150B1045	SCREW，HEXAGONHEADCAP	12	Random Items
2	Q 40310	RING，RETAING	12	Random Items
3	Q40110	WASHERPLAIN	12	Random Items
4	Q340B10	NUT	12	Random Items
5	CB102380D	VENTINGCORRUGATEDPIPES	1	Random Items
6	12Z07-03044	VENTINGCORRUGATEDPIPES KAGU	1	Random Items
——END——

DOUBLE FLANGE MUFFLER
NO	Part NO	Part Name	QTY	REMARKS
1	Q150B1045	SCREW，HEXAGONHEADCAP	12	Options
2	Q 40310	RING，RETAING	12	Options
3	Q40110	WASHERPLAIN	12	Options
4	Q340B10	NUT	12	Options
5	1201ZF-010-S	DOUBLEFLANGEMUFFLER	1	Options
6	12ZF-020	CONNECTIVETYFLANGE	2	Options
——END——

DOUBLE-PIPELINE
NO	Part NO	Part Name	QTY	REMARKS
1	6CTAPS	DOUBLE-PIPELINE	1	Options
——END——

FUEL WARNING
NO	Part NO	Part Name	QTY	REMARKS
1	KCB20101100	SUPPORT，MOUNTING	1	Options
2	KCB20101004	CONNECTION，OILSUCTIO	1	Options
3	KCB20101101	LONG PIPELINE	6	Options
4	Q150B0620	SCREW，HEXAGONHEADCAP	4	Options
5	Q150B0635	SCREW，HEXAGONHEADCAP	4	Options
6	KCB20101102	SHORT PIPELINE	1	Options
7	XB950111	FUELWARNING	1	Options
——END——

INSULATE AGAINST HEAT TO COVER
NO	Part NO	Part Name	QTY	REMARKS
1	KPFZ-6C-00	EXHAUST MANIFOLD、EXHAUST AGAINST、SUPERCHARGER 、THERMALLY INSULATED SHROUD	1	——
2	Q150B1035	SCREW，HEXAGONHEADCAP	1	——
——END——

DCEC 6CTA8.3-GM155 marine auxiliary engine is a 6-cylinders in line, 8.3 liters four-strokes engine with 114 mm bore and 135 mm stroke.

Equipped with BYC PB fuel pump and GAC electronic governor, engine comes with turbocharger and Water-Air Intercooler.

The prime power for generator set 1500 RPM of DCEC 6CTA8.3-GM155 marine auxiliary engine is 155 kW.

DCEC provides both heat exchanger cooling and radiator cooling marine auxiliary engines, which mainly using for marine main generator and marine emergency generator.

For the emergency generator set applications, we provide additional options for customers such as dual starter motor system (we provide both electric and spring starter motor for customers), which are required by most of international classifications.

All of DCEC marine auxiliary engine are comes with dry type exhaust system, which means dry type exhaust manifold and dry type turbocharger, SeaMac provides upgrading services for water-cooled exhaust system, which modify dry type exhaust system into water-cooled exhaust system, which are quite important and often requested by passenger boat projects.

Advantages of 6CTA8.3-GM155 Auxiliary Engine

Advanced design, exquisite manufacturing technology, reliable and durable, suitable for high-strength and heavy-duty operations under severe working conditions.
Using high-pressure fuel pump, combustion is more complete under high fuel injection pressure, less energy loss, strong power, strong fuel adaptability, and lower emissions.
Adopt Holset supercharger with integral wastegate valve, low speed responsiveness and strong power.
Integral cylinder design, the number of parts is about 25 % less than similar products, the failure rate is lower, and the maintenance is more convenient.
The cylinder liner adopts a platform mesh honing design and a corrosion-resistant high-nickel cast iron piston, which greatly reduces oil loss, enhances durability, and has a longer service life.

Engine Model	Peak Torque	Rated Power	Fuel System	Aspiration
6CT8.3-GM115	212 g / kW.h @ 1500 RPM	115 kW @ 1500 RPM	BYC PB Pump / GAC Electronic Governor	Turbocharged
6CT8.3-GM129	222 g / kW.h @ 1800 RPM	129 kW @ 1800 RPM	BYC PB Pump / GAC 24 V Electronic Governor	Turbocharged
6CTA8.3-GM155	214 g / kW.h @ 1500 RPM	155 kW @ 1500 RPM	BYC PB Pump / GAC Electronic Governor	Turbocharged & Water-Air Intercooler
6CTA8.3-GM175	218 g / kW.h @ 1800 RPM	175 kW @ 1800 RPM	BYC P7100 Pump / GAC 24 V Electronic Governor	Turbocharged & Water-Air Intercooler
——END——

General Infomation of DCEC 6CTA8.3-GM155 Marine Auxiliary Engine
Engine Model	6CTA8.3 – GM155	Displacement	8.3 L
*Bore Stroke**	114 mm * 135 mm	Aspiration	Turbocharged & Water – Air Intercooler
Cylinders	6 Cylinders, in Line	Fuel System	BYC PB Pump / GAC Electronic Governor
Governor Regulation	≤ 3 %	Rated Power	155 kW @ 1500 RPM
Standby Power	170 kW @ 1500 RPM	Dry Weight	637 kg
Instantaneous Inertia of Rotating Parts	0.37kg.m²	Low Idle Speed	950 – 1050 RPM
Distance from Center of Gravity to Center Iine of Crankshaft (Above Crankshaft)	163 mm	Distance Between Center of Gravity and Rear End Face of Cylinder Block	541 mm
Compression Ratio	17.3 : 1	Piston Speed	6.75 m / sec
Firing Order	1 – 5 – 3 – 6 – 2 – 4

Installation Data of DCEC 6CTA8.3-GM155 Marine Auxiliary Engine
Maximum (Static) Bending Moment at Front Support Mounting Surface			435 N.m
Maximum (Static) Bending Moment Allowed for Side-Mounted Boss			N / A
Maximum (Static) Bending Moment at Rear Face of Block			1356 N.m
Moment of Inertia of Complete Engine – Roll Axis			23.6 kg.m²
Moment of Inertia of Complete Engine – Pitch Axis			65.2 kg.m²
Moment of Inertia of Complete Engine – Yaw Axis			55.9 kg.m²

Fuel System of DCEC 6CTA8.3-GM155 Marine Auxiliary Engine
Maximum Fuel Flow of Oil Pump			202 litre / hr
Maximum Oil Intake Resistance – Clean Fuel Filter			63.5 mmHg
Maximum Oil Intake Resistance – Dirty Fuel Filter			100 mmHg
Maximum Fuel Inlet Temperature			60 ℃
Maximum Allowable Return Line Pressure			254 mmHg
——END——

Performance Curve DCEC Cummins 6CTA8.3-GM155 Marine Auxiliary engine

System Technical Data of DCEC 6CTA8.3-GM155 Marine Auxiliary Engine

Exhaust System	Maximum Back Pressure	75 mmHg
	Exhaust Gas Flow	N/A
	Exhaust Gas Temperature	550 ℃
	Heat Rejection to Ambient	N/A
	Exhaust Pipe Size Normally Acceptable	75 mm
	Maximum Static Supported Weight at the Turbocharger Outlet Flange	22.7 kg

Air Intake System	Maximum Intake Air Restriction with Heavy Duty Air Cleaner—Dirty Element	380 mmH2O
	Maximum Intake Air Restriction with Heavy Duty Air Cleaner—Dirty Element	635 mmH2O
	Minimum Dirt Holding Capacity with Heavy Duty Air Cleaner	53 g / litre / sec
	Maximum Temperature Rise from Ambient to the Inlet of the Turbocharger	17 ℃
	Maximum Pressure Drop from Turbocharger Outlet to Intake Manifold	75 mmHg
	Intake Air Flow	N/A
	Heat Rejection to Ambient	N/A
	Minimum ambient temperature for Cold Starting	-12 ℃

LubricationSystem	Normal Operating Oil Pressure Range	276 – 414 kPa
	Maximum Lube Oil Flow for Engine Accessories	7.6 litre / min
	Maximum Sump Oil Temperature	121 ℃
	Minimum Oil Pressure- Idle	103 kPa
	Minimum Oil Pressure – Operating RPM	276 kPa
	Minimum Required Lube System Capacity – Sump Plus Filters	19 litre
	By-Pass Filtration Required	Yes
	Angularity of Standard Oil Pan—Front Down	45 °
	Angularity of Standard Oil Pan—Front Up	45 °
	Angularity of Standard Oil Pan—Side to Side	45 °

Cool Start System	Minimum Battery Capacity	12 V 24 V
	Cold Soak at 0Â°F (â€“18Â°C) or AboveEngine Only – Cold Cranking Amperes	1375 CCA * 625 CCA
	Engine Only – Reserve Capacity	360 – 180 minutes
	Maximum Starting Circuit Voltage Drop	N/A
	Minimum Ambient Temperature for Unaided Cold Start	-12 ℃
	Minimum Cranking Speed Required for Unaided Cold Start	120 RPM
	Maximum Starting Circuit Resistance	0.0012 * 0.002 Ohms

Cooling System	Coolant Capacity – Engine Only	12.3 litre
	Minimum Water Pump Inlet Pressure with Non-Deaerating or Partially Deaerating	N/A
	Maximum Static Head of Coolant Above Crankshaft Centerline	N/A
	Standard (Modulating) Thermostat Range	82 – 95 ℃
	Max. Allowable Block Coolant System Pressure	103 kPa
	Minimum Pressure Cap Rating at Sea Level	69 kPa
	Maximum Coolant Operating Temperature at Engine Outlet (Max. Top Tank Temp)	96 ℃
	Minimum Operating Block Coolant Temperature	79.4 ℃
	Minimum Coolant Expansion Space (% of System Capacity)	5 %
	Heat Rejection to Coolant	N/A
	Engine Coolant Flow -.1psi I Engine External Cooling Cycle Resistance	N/A
	5psi(34kPa) I Engine External Cooling Cycle Resistance	N/A
	Maximum Recommended External Coolant Flow Restriction in Engine Circuit	35 kPa
	Sea Pump Flow (At 10 Psi Sea Pump end Pressure Prop)	238 litre / min
	Maximum Deaeration Time	25 min
	Minimum Drawdown (% Total Cooling System Capacity)	0.11 %
	Outlet Temperature of Coolant When the Clutch Fan is Running	93 ℃
——END——

Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.

What's the Standard Scopes of Supply?

With full ranges of emission standard from Euro 2 to Euro 7, Dongfeng Cummins producing 12 series marine engines, started from 3.9 liter engine, to 15 liter engine, covering the power range of 125HP to 650HP.
Dongfeng Cummins marine engine customize developing configurations for big vehicle OEMs in China, based on each of requirement, Dongfeng Cummins producing dozens of different configuration engines with same engine model number, which only SO-Shop Order will be different with each other, the SO number is the identify number of the engine configuration of each model.
Even with same engine model, different SO number engine can have very different configuration with each other, with different prices. Some of SO-Shop Order is not available for commercial market, such as restricted models (Usually for military specifications).
EMAC offering most common, cost effective models which also able to process the production in Dongfeng Cummins, which usually have following accessories as standard configuration.

Scopes of Supply of DCEC Marine Engine
Scopes of Supply of DCEC Marine Engine
Air Intake System	1. Air Intake Manifold	Exhuast System	1. Exhuast Manifold
	2. Air Filter		2. Turbocharger
	3. N / A		3. Exhuast Elbow
Starting System	1. Starter Motor	Charging System	1. Charging Alternator
Starting System	2. Starter Rely	Charging System	2. N / A
Lubricating System	1. Oil Pump	Fuel System	1. Fuel Transfer Pump
	2. Oil Filter		2. High-Pressure Fuel Pump
	3. N / A		3. Machanical Governor
	4. N / A		4. Fuel Filter
Engine Shut-Down System	1. Engine Fuel Shut-Off Solenoid	Power Output System	1. Flywheel
Engine Shut-Down System	2. N / A	Power Output System	2. Standard Flywheel Housing
------END------

What's the Available Optional Items?

Dongfeng Cummins only provides customize service for the large quantity orders or large OEMs, which means usually the order quantity are higher than 1000 units. For the small quantity engine project, EMAC provides customize services with our own resource and engineer team.
EMAC have rich experience on the customize developing, which provides abundant optional items based on the requirement of each project. The typical optional items are special Prestolite charging alternator, prestolite starter motor, Knorr Air compressor. Valeo air conditioning compressor, ECU output socket set, engine accelerate pedal etc.

Optional Accessories of DCEC DCEC marine Engine
Air Intake System	1. Air Intake Pre-Heater	Exhuast System	1. Muffler & Bellows
	2. Air Intake Pre-Filter		2. Flame Trap
	3. Air Filter Alarm System		3. Spark Arrestor Type Muffler & Bellows
	4. N / A		4. DPF System

Fuel System	1. Coarse Filter	Engine Auiliary Accessories	1. Hydraulic Oil Pump
Fuel System	2. Fuel Pre-Heater	Engine Auiliary Accessories	2. Hydraulic Cluch

Starting System	1. Manual Magnetic DC Contactor	Cooling System	1. Engine Monitor
	2. Dual Ears Flywheel Housing		2. Engine Protection System With Alarm System
	3. Spring Starter Motor		3. Machanical Engine Control Lever Syste
	4. Air Starter Motor		4. Electric Engine Control Lever System
	5. Hydraulic Starter Motor		5. N / A
	6. Manual Magnetic DC Contactor		6. N / A

Power Output System	1. Gear Reduction Gearbox	Cooling System	1. Coolant Pre-Heater
Power Output System	2. Reverse Gear Box	Cooling System	2. Jacket Water Heater

Lubricating System	1. Oil Pre-Heater	Engine Mounting System	1. Shock Absorber Pad
------END------

Committed to providing reliable premium propulsion system and power system for all kinds of ships around the world, SeaMac is a sub-brand of EMAC group that focused on maritime application.
SeaMac's ranges of products mainly inclduing marine main engine, marine gearbox, marine propellers, marine control lever system, marine auxiliary engine, marine generator set and emergency generator set.
For more information of our marine proplusion and power system products, you are welcome to visit SeaMac homepage: www.seamac.com

What's the Modifiable Items and Scopes?

As explained in the standard scopes of supply, Dongfeng Cummins not able to provide customize developing for small quantity projects or small OEMs, so EMAC helps SME OEMs to provide customize services, not only providing additional optional items, but also provides customize modification services to meet their requirements based on the exisiting engine SO number.
As flexible service ability is our core advantages, EMAC is very experienced and good at providing customize services, the common customize services are as below:
1: AIr Intake System: Change the air intake direction.
2: Air Exhuast System: We are able to change the turbocharger direction as the interaction on installation could be occured, also change change the air exhuast direction.
3: Lubricating System: Modify lubricating system is one of the most common requirement from customer, we can provide flat-type engine oil pan, to lower down total engine height, which usually required for special vehicles. For the standard engine oil pan, we also can change the direction of the engine oil pan.
4: Cooling System: There are lots of options for the engine cooling system, for the engine fan, we can provide customize for the material of engine fan (plastic fan or steel fan), wind direction of the engine fan (blower fan or suction fan ) and types of engine fan (mechanical fan or electric control fan).
5: Power Output System: Most of electronic controlled Dongfeng Cummins marine engines are comes with SAE#1 flywheel housing now, while lots of customers need SAE#2 flywheel because of the housing of transmissio is SAE#2, so we have to provide customzie services for those customer, which need to modify flywheel housing, flywheel and starter motor, we also have PTO integrated type flywheel housing available, which can output the whole power of the engine from the PTO on the flywheel housing, we can also provide modification of the mounting side of the starter motor.
6: Electric System: All of Dongfeng Cummins engines are comes with standard 24V electric system, while some customer need to modify the electric system into 12V, we can also modify the starter motor and alternator into appointed brand or appointed specifications.
EMAC is your reliable professional power system partner, feel free to contact our services team to get detailed information about our standard scopes of supply, optional items and modifiable parts for our Dongfeng Cummins marine engine, we are ready to explore the journey of our cooperation.

How to Order Engine to Replace Your Old Engine?

There are three types of engine replacements demand, type A is to replace the old Dongfeng Cummins engine, the original engine is produced by Dongfeng Cummins, type B is to replace Cummins engine produced in other countries including UK, USA, Mexico, India or Japan Komatsu Cummins, type C is to replace other brands engine or even gasoline engines with Dongfeng Cummins produced engines. The detailed introduction and replacement process are as below:
Type A: Engine Replacement Requirement (Original Engine is Dongfeng Cummins Engine).
This is most simple demand case, you just need to provide us the original engine name plate, and then we can easily check and confirm what exactly you need, and we also ensuring that the engine from us will be 100% same with your original engine. (In some case that the vehicle manufacturing modify the engine on their own, we are not able to supply the parts or the condition that modified by the vehicle manufacturer)
Type B: Engine Replacement Requirement (Original Engine is Cummins Engine but produced in UK, USA or other Cummins engine plant).
EMAC have rich experiences in replace the UK, USA or other engine plant produced engine, with Dongfeng Cummins produced Cummins engines, we required the original engine name plate photo to obtain the related information (at least we will need engine serial number, with engine model name only is useless for us, we are not able to provide quotation with engine model name only for the replacement project), and then we can check out the BOM list and all accessories of your original engine serial number, and then we can check and compare with the BOM list of our Dongfeng Cummins produced engine, choose the most closest SO number engine, and modify the parts that not same with your original engine, we have delivered hundreds of cases of replace the customer's original engine that produced in Cummins UK, USA or other engine plants with Dongfeng Cummins produced engines, you can refer to our video introduction on Youtube: https://youtu.be/dYVgRM5NsUo
We can NOT guarantee the engine produced by Dongfeng Cummins is exactly same with your original engine, but we can guarantee that all of engines from EMAC will have no problem with installtion and performance, which all of engines can works very well after replacement.
Type C: Engine Replacement Requirement (Original Engine is other brnad engines even gasoline engines).
EMAC also have rich experiences in replace the engine that not Cummins installed, these engines can be other brands such as Deutz, Caterpillar, Perkins, Komatsu or others, we even had experiences of replace gasoline engine with Dongfeng Cummins produced diesel engines.
This kind of appliaction is more complex and quite risky, EMAC can't do much thing due to lacking of information, the only thing we can guarantee is the performance after replacement, we check and compare the engine performance curve of original engine and our Dongfeng Cummins engine, and then we select the most suitable model for replacement. Due to we are lacking of the installation spaces and related accessories, we will send the both CAD and 3D drawing for our recommend engine model, and then customer have to evaluate the risky of replace the original engine with our engine, especially the risky of space, the possibile interactive when installation, and the risky of modify related coolant pipe, air pipes and wiring harness. Normally this kind of request consuming lots of energy and resource for us to carry on, also quite risky for us, so we will not work on the replacement quantity that below 50 units.
When your requirement is replacement, please tell our customer service team of what type of replacement you need, and provide us original engine name plate, the engine name plate is the necessary material before we start our business negotiations, we will NOT reply to all inquiry that even can't provide engine name plate.

How to Choose the Right Dongfeng Cummins Marine Engine for You?

To choose a suitable engine for truck, bus or special vehicle manufacturer is quite simple, because the buyer is the manufacturer, so usually they are quite flexible with space, pipes and wiring connections.
The following process are the standard process for us to select a suitable engine model for truck, bus or special vehicle manufacturer demand.
Step 1: We need basic information of the required engine, including rated power, rated speed and emission standard of the required engine.
Step 2: EMAC will evaluate the requirement and select the suitable engine model for customer, with engine data sheet, engine performance curve, CAD darwing, 3D model and budgetary quotation provided back to customer.
Step 3: Customer should check and compare the engine data sheet, performance curve and related drawing and confirm all details one by one. Most important thing is confirm the performance curve suitable for the requirement.
Step 4: After engine confirmed, we have to check and confirm the specifications of accessories one by one carefully, like the electric system specifications (12V or 24V), the detailed specifications of starter motor, charging alternator, air compressor, power steering pump, A/C compressor etc.
Step 5: Confirming the accessories positions and connections, customer need to check and confirm all positions are suitable for the project, such as engine fan, turbocharger, oil pan position, and connections of air pipe, coolant pipe, wiring harness etc.
Step 6: After confirming the engine performance, position, connection and specifications of all accessories, we will be able to provide accurate quotation for prototype and batch order. Prototype is strongly recommend to start the cooperation, to avoid the possible problem, risky on the engine with batch order.
Notes:
1: Technical support including technical training, onsite installation and commissioning services are avaiable with additional chargers.
2: We are able to supply complete powertrain system, including engine, transmission, transfer, axle, suspension etc, engine with transmission is highly recommended, because if we supply both engine and transmission, we can run simulations for the vehicle, which we usually will provide customer a simulation report, with the simulated result of Balanced Maximum Vehilce Speed and Maximum Grade Ability at different speed.
3: EMAC able supply complete chassis that integrate all powertrain system together, which can greatly reduce the manufacturer's design works and reduce the system mismatching risky.

Tips of Dongfeng Cummins Marine Engines!

Dongfeng Cummins is one of 50:50 joint venture of Cummins in China, its official Cummins factory that following high Cummins USA production and quality control standard, the Dongfeng Cummins factory swap every 5 years between appointed employee from Dongfeng Motor and Cummins. For more details, you can refer to the company introduction of DCEC-Dongfeng Cummins Engine Company.

Company Introduction: DCEC Engine Company

DCEC Engine Co., Ltd. (DCEC), located in Xiangyang, Hubei Province, is a 50/50 joint venture between DCEC Inc. and Dongfeng Automobile Co.,Ltd. In 1986, Dongfeng Automobile Co.,Ltd. signed a license agreement with DCEC Inc. for B-series engines. DCEC Engine Co., Ltd. was established in June 1996, with registered capital of over 100 mi...

Started the production of Cummins engines in China in 1980s, Cummins products has been in China for over 40 years, thousands of people have worked for Cummins China and some of them are very skilled experienced engineer, some of them resigned from Cummins to set up their own small workshops or assembly factories that focusing on producing copy Cummins engines.

A Sad Experiece With Counterfeits DCEC Generator Set

Whoever dealing with Chinese suppliers should always remember that, price is always not a problem with your Chinese suppliers, but trust is the problem! EMAC might can't give you lowest price, but EMAC never cheat any of customer and always be responsible for all of our business partners.

Price is always not the problem for Chinese suppliers, there are many tickies to lower down the engine prices, such as supply self-rebuild engine as new engine, supply official RECON engine from Cummins as brand new engine, assembly the fake engine with after-market parts, supply lower power model engine and change the name plate etc. You can find plenty of suppliers on alibaxx.com with various prices, the classic Chinese business style is tell you that he give you very low price and not make profit, how can you believe a businessman will make business that have no profit? They gave you low price not becuase they share their profit to you?
As a matter of fact, Chinese supplier often make their profit much more higher by selling the low quality copy products as genuine brand new products! Always remember YOU GET WHAT YOU PAID!
The key point of dealing with Chinese supplier, is to find and choose reliable business partner that will not cheat you for short-term business, but with vision of build long-term career and life-time partnership, EMAC is one of the reliable partner that not chasing for short-term high profit, but we cares our decades of good reputation and we working with all business partners not as supplier and customers, but as close friend and brothers.

FAQ of Dongfeng Cummins Marine Engines?

1: What mean by DCEC?
DCEC is the short name of Dongfeng Cummins Engine Company, take the first letter of each word, it comes with DCEC as short name, for more details about DCEC, you can refer to the company introduction of DCEC-Dongfeng Cummins Engine Company.

Company Introduction: DCEC Engine Company

DCEC Engine Co., Ltd. (DCEC), located in Xiangyang, Hubei Province, is a 50/50 joint venture between DCEC Inc. and Dongfeng Automobile Co.,Ltd. In 1986, Dongfeng Automobile Co.,Ltd. signed a license agreement with DCEC Inc. for B-series engines. DCEC Engine Co., Ltd. was established in June 1996, with registered capital of over 100 mi...

2: Does your engines copy products?
This question is quite often from customer that not familiar with Cummins, Cummins have over 20 joint ventures in China now, and 6 of them are engine joint venture, which Cummins owns 50% share of all of those 6 engine plants, so all of the Cummins factories in China are genuine Cummins factory, that following high Cummins USA production and quality control standard. EMAC is the business partner of DCEC, and we are supplying powertrain and engine power pack based on genuine brand new engines from Dongfeng Cummins for all different applications, EMAC is a reliable and professional power system solution provider that offering abundant various options.
3: Why there are so many companies selling Cummins engines?
There are plenty of companies selling Cummins engines in China, especially on the B2B platform, such as alibaxx.com, you can find plenty suppliers there with attractive prices, Cummins products has been in China for over 40 years, thousands of people have worked for Cummins China and some of them are very skilled experienced engineer, some of them resigned from Cummins to set up their own small workshops or assembly factories that focusing on producing copy Cummins engines. You should be careful of being cheated by the attractive prices with copy or rebuild products.
4: How can I identify if the engine genuine or not?
Cummins keep working on the updating its identification system, technically, there are serial number on all key components of Dongfeng Cummins engines, including cylinder block, cylinder head, turbochager, fuel pump, starter motor, alternator, you can collecting the serial number (NOT part number), and then call DCEC call service center to identify if all the numbers are matching to the original number or not. EMAC continuously updating the latest Cummins identification system, you are welcome to following our website or keep in touch with our customer services team to get latest information from Cummins.
5: What's the warranty policy for the engines supplied by EMAC?
EMAC following standard Dongfeng Cummins warranty policy, which will update sometimes, you can following us to get the latest warranty policy from Dongfeng Cummins. Generally EMAC only afford the defective parts cots and shipping costs for the warranty claims, labor costs and transportation costs are not covered in the warranty.
However, EMAC is building our own independant after-sales service system now, which aims to build a global service network, with resouces of global repair and engineering network, which we believe can bring all business partner benifit in future, helping all of OEM manufacturers expanding their market into global market without worries of lacking after-sales service network. For more details about our Global Service, you can visiting www.global-service.com.
6: How about the future parts supply for the engines? Are you able to supply parts?
As the support team of EMAC's business scope, PartMac is our own brand that focusing on genuine parts directly from all brand factories.
All of EMAC’s partners are facing big challenges with sourcing original spare parts in China. Committed to providing truthworthy and professional after-sales support and parts supply, PartMac is a sub-brand of EMAC group that focusing on parts business. Stick to original parts only, PartMac can’t give any solution on CHEAP PARTS, but you don’t need to worry about any quality issues with every single parts from PartMac.
