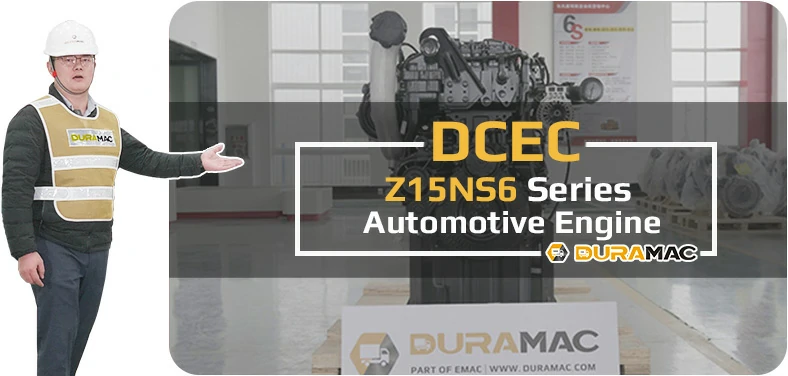

DCEC Z15NS6 Automotive Engine
DCEC Z15NS6 series automotive engine is four-strokes engine with 132 mm bore and 175 mm stroke, Equipped with Bosch (or BYC or Weifu) pump. engine comes with turbocharger and Air- Air intercooler. The prime power range is from 600 HP to 660 HP.
As part of EMAC, DuraMac provides complete powertrain that integrated with DCEC engine, Fast-Eaton clutch, FAST-CAT transmission, Dongfeng-DANA axle and Komman air suspension, while the electrification of automobile is the certain future, Duramac also get involved with EV powertrain system. We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
DCEC Z15NS6 series electronic automotive engine can reach upto EU Stage VI emission standard, the number 30/40/50/60 are the emission standard mark of engine, which means engine emission standard are EU Stage III, IV, V, VI. For different emission standard DCEC Z15NS6 electronic series automotive engine, the engine itself are the same, the major different are the after-treatment system and ECU program, EMAC will keep updating products introduction page of different emission standard version engines, welcome to subscribe our website to get latest update information.
If you are in need of engine model that not available on our website for the moment, please contact EMAC sales team for technical details and related documents, our well trained sales and engineering team will help you with all products and techical documents available here at DCEC.
General Specifications of Z15NS6 Series
| Engine Type: | 6 Cylinders |
| Displacement: | 15 L |
| Bore * Stroke: |
132 mm * 175 mm |
| Advertised Power: |
600 – 660 HP @ 1800 RPM |
| Peak Torque: |
2800 – 3200 N.m @ 900-1400 RPM |
| Rated Speed: | 1800 RPM |
| Emission Standards: |
Euro VI |
| Aspiration Method: | Turbocharged & Intercooler |
| Weight: | 1108 kg |
| Fuel System: | XPI |
| Z15NS6B600600 HP | ||||||||
| Z15NS6B630630 HP | ||||||||
| Z15NS6B660660 HP | ||||||||
|
Engine Model Power/HP |
580 | 590 | 600 | 630 | 640 | 650 | 660 | 670 |
| Emission Srandard:Euro ⅠEuro ⅡEuro ⅢEuro ⅣEuro ⅤEuro ⅥEuro Ⅶ | ||||||||
Engine Model |
Rated Power |
Peak Torque |
Engine Model |
Rated Power |
Peak Torque |
||
| Z15NS6B600 | 600 HP @ 1800 RPM | 2800 N.m @ 900-1400 RPM | Z15NS6B630 | 630 HP @ 1800 RPM | 3000 N.m @ 900-1400 RPM | ||
| Z15NS6B660 | 660 HP @ 1800 RPM | 3200 N.m @ 900-1400 RPM | |||||
| ——END—— | |||||||
DCEC Z15NS6 Series Automotive Engine
This is the list of all series of DCEC Z15NS6 Series Automotive Engine.
Click here to find automotive engines by type (Fuel System & Emission Standard).
Z15NS6B600 Automotive Engine
Rated Power: 600 HP @ 1800 RPM
Max. Torque: 2800 N.m @ 900-1400 RPM
Fuel System: XPI
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: EURO VI
Z15NS6B630 Automotive Engine
Rated Power: 630 HP @ 1800 RPM
Max. Torque: 3000 N.m @ 900-1400 RPM
Fuel System: XPI
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: EURO VI
Z15NS6B660 Automotive Engine
Rated Power: 660 HP @ 1800 RPM
Max. Torque: 3200 N.m @ 900-1400 RPM
Fuel System: XPI
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: EURO VI
