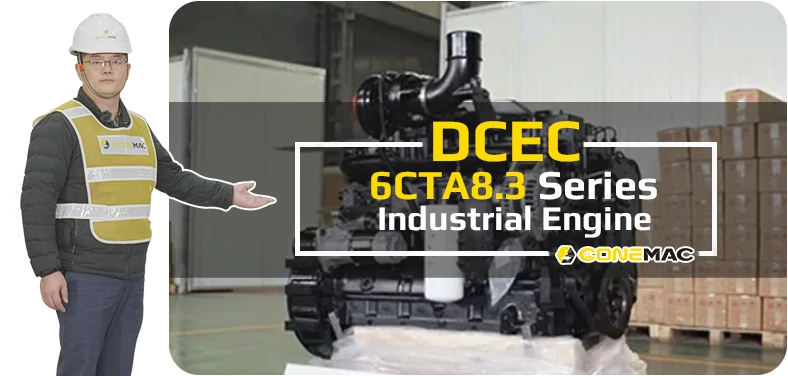

DCEC 6CTA8.3 Industrial Engine

DCEC 6CTA8.3 series Industrial engine is a 6-cylinders in line, 8.3 liter four-strokes engine with 114 mm bore and 135 mm stroke. DCEC 6CTA8.3 series Industrial engine equipped with Weifu (or BYC) fuel pump and RSV governor. The prime power range of is 145 HP to 280 HP.
To achieve different output, DCEC 6CTA8.3 series Industrial engine have three configurations which are turbocharged engine, turbocharge with water-air intercooler, turbocharge with air-air intercooler. In the detailed model name, code T means engine come with turbocharger, code single A means engine comes with water-air intercooler, and code double A means engine comes with air-air intercooler. As part of EMAC, ConeMac provides industrial power pack solution that integrated with air intake, air exhaust, cooling system, control system, transmission and hydraulic accessories, We also supplying special products such as explosion proof engine, generator and water pump set, as well as ultra-low temperature condition engine power pack. We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
DCEC 6CTA8.3 series electronic industrial engine can reach upto EU Stage V emission standard, the number 30/40/50 are the emission standard mark of engine, which means engine emission standard are EU Stage III, IV, V. For different emission standard DCEC 6CTA8.3 series electronic industrial engine, the engine itself are the same, the major different of different emission standard engine models are the after-treatment system and ECU program, EMAC will keep updating products introduction page of different emission standard engine models, welcome to subscribe our website to get latest update information.
If you are in need of engine model that not available on our website for the moment, please contact EMAC sales team for technical details and related documents, our well trained sales and engineering team will help you with all products and techical documents available here at DCEC.

your 360 images

General Specifications of 6CTA8.3 Series

Engine Type: 6 Cylinders, in Line
Displacement: 8.3 L
Rated Speed: 1900 – 2200 RPM
Emission Standards: Euro Stage I – Euro Stage II
Aspiration Method: TC & Water-Air Intercooler
Advertised Power: 145 – 280 HP @ 1900 – 2200 RPM
Peak Torque: 543 – 899 N.m @ 1900 – 2200 RPM
Bore * Stroke: 114 mm * 135 mm
Wet Weight: 604 – 656 kg
Dimension(L * W * H): 1115 mm * 716 mm * 1077 mm
6CTA8.3-C145 6CTA8.3-C145145 HP
6CTA8.3-C190-II 6CTA8.3-C190-II190 HP
6CTA8.3-C195 6CTA8.3-C195195 HP
6CTA8.3-C205 6CTA8.3-C205202 HP
6CTA8.3-C205-II 6CTA8.3-C205-II202 HP
6CTA8.3-C212 6CTA8.3-C212212 HP
6CTA8.3-C215 6CTA8.3-C215215 HP
6CTA8.3-C215-I 6CTA8.3-C215-I215 HP
6CTA8.3-C215-II 6CTA8.3-C215-II215 HP
6CTA8.3-C215-III 6CTA8.3-C215-III215 HP
6CTA8.3-C215-IV 6CTA8.3-C215-IV202 HP
6CTA8.3-C215-V 6CTA8.3-C215-V215 HP
6CTA8.3-C215-VI 6BT5.9-C115115 HP
6CTA8.3-C215-VII 6CTA8.3-C215-VII215 HP
6CTA8.3-C215-VIII 6CTA8.3-C215-VIII215 HP
6CTA8.3-C230 6CTA8.3-C230230 HP
6CTA8.3-C230-I 6CTA8.3-C230-I228 HP
6CTA8.3-C230-II 6CTA8.3-C230-II231 HP
6CTA8.3-C230-III 6CTA8.3-C230-III228 HP
6CTA8.3-C240 6CTA8.3-C240240 HP
6CTA8.3-C240-I 6CTA8.3-C240-I240 HP
6CTA8.3-C240-II 6CTA8.3-C240-II240 HP
6CTA8.3-C260 6CTA8.3-C260260 HP
6CTA8.3-C260-I 6CTA8.3-C260-I260 HP
6CTA8.3-C260-II 6CTA8.3-C260-II260 HP
6CTA8.3-G2 6CTA8.3-G2278 HP
6CTAA8.3-C145 6CTAA8.3-C145145 HP
6CTAA8.3-C215 6CTAA8.3-C215215 HP
6CTAA8.3-C240 6CTAA8.3-C240240 HP
6CTAA8.3-C240-II 6CTAA8.3-C240-II240 HP
6CTAA8.3-C260 6CTAA8.3-C260260 HP
6CTAA8.3-C260-II 6CTAA8.3-C260-II260 HP
6CTAA8.3-C280 6CTAA8.3-C280280 HP
6CT9.5-C220 6CT9.5-C220217 HP
6CT9.5-C220-I 6CT9.5-C220-I217 HP

Engine Model

Power/HP

115 200 210 220 230 240 260 280
Emission Srandard:Euro ⅠEuro ⅡEuro ⅢEuro ⅣEuro ⅤEuro ⅥEuro Ⅶ
DCEC 6CTA8.3 Industrial Engine Catalogue

Engine Model

Rated Power

Peak Torque

Engine Model

Rated Power

Peak Torque

6CTA8.3-C145 145 HP @ 1900 RPM 543 N.m @ 1900 RPM 6CTA8.3-C190-II 190 HP @ 2200 RPM 618 N.m @ 2200 RPM
6CTA8.3-C195 195 HP @ 1900 RPM 718 N.m @ 1900 RPM 6CTA8.3-C205 202 HP @ 1850 RPM 780 N.m @ 1850 RPM
6CTA8.3-C205-II 202 HP @ 1850 RPM 780 N.m @ 1850 RPM 6CTA8.3-C212 212 HP @ 2200 RPM 686 N.m @ 2200 RPM
6CTA8.3-C215 215 HP @ 2200 RPM 693 N.m @ 2200 RPM 6CTA8.3-C215-I 215 HP @ 2200 RPM 693 N.m @ 2200 RPM
6CTA8.3-C215-II 215 HP @ 2200 RPM 695 N.m @ 2200 RPM 6CTA8.3-C215-III 215 HP @ 2200 RPM 695 N.m @ 2200 RPM
6CTA8.3-C215-IV 202 HP @ 1850 RPM 780 N.m @ 1850 RPM 6CTA8.3-C215-V 215 HP @ 2200 RPM 684 N.m @ 2200 RPM
6CTA8.3-C215-VI 215 HP @ 2200 RPM 695 N.m @ 2200 RPM 6CTA8.3-C215-VII 215 HP @ 2200 RPM 695 N.m @ 2200 RPM
6CTA8.3-C215-VIII 215 HP @ 2200 RPM 693 N.m @ 2200 RPM 6CTA8.3-C230 230 HP @ 2200 RPM 744 N.m @ 2200 RPM
6CTA8.3-C230-I 228 HP @ 1850 RPM 878 N.m @ 1850 RPM 6CTA8.3-C230-II 231 HP @ 2200 RPM 748 N.m @ 2200 RPM
6CTA8.3-C230-III 228 HP @ 1850 RPM 878 N.m @ 1850 RPM 6CTA8.3-C240 240 HP @ 2200 RPM 777 N.m @ 2200 RPM
6CTA8.3-C240-I 240 HP @ 2200 RPM 782 N.m @ 2200 RPM 6CTA8.3-C240-II 240 HP @ 2200 RPM 782 N.m @ 2200 RPM
6CTA8.3-C260 260 HP @ 2200 RPM 842 N.m @ 2200 RPM 6CTA8.3-C260-I 260 HP @ 2200 RPM 842 N.m @ 2200 RPM
6CTA8.3-C260-II 260 HP @ 1900 RPM 975 N.m @ 1900 RPM 6CTA8.3-G2 278 HP @ 1800 RPM N / A
6CTAA8.3-C145 145 HP @ 1900 RPM 542 N.m @ 1900 RPM 6CTAA8.3-C215 215 HP @ 2200 RPM 694 N.m @ 2200 RPM
6CTAA8.3-C240 240 HP @ 2200 RPM 777 N.m @ 2200 RPM 6CTAA8.3-C240-II 240 HP @ 2000 RPM 858 N.m @ 2000 RPM
6CTAA8.3-C260 260 HP @ 2200 RPM 842 N.m @ 2200 RPM 6CTAA8.3-C260-II 260 HP @ 2000 RPM 927 N.m @ 2000 RPM
6CTAA8.3-C280 280 HP @ 2200 RPM 899 N.m @ 2200 RPM 6CT9.5-C220 217 HP @ 2200 RPM 703 N.m @ 2200 RPM
6CT9.5-C220-I 217 HP @ 2000 RPM 774 N.m @ 2000 RPM
——END——

DCEC 6CTA8.3 Series Industrial Engine

This is the list of all series of DCEC 6CTA8.3 Series Industrial Engine.
Click here to find industrial engines by type (Fuel System & Emission Standard).

6CTA8.3-C145 Industrial Engine

6CTA8.3-C145 Industrial Engine

Rated Power: 145 HP @ 1900 RPM
Maximum Torque: 674 N.m @ 1300 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C190-II Industrial Engine

6CTA8.3-C190-II Industrial Engine

Rated Power: 190 HP @ 2200 RPM
Maximum Torque: 618 N.m @ 2200 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C195 Industrial Engine

6CTA8.3-C195 Industrial Engine

Rated Power: 195 HP @ 1900 RPM
Maximum Torque: 883 N.m @ 1400 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C205 Industrial Engine

6CTA8.3-C205 Industrial Engine

Rated Power: 202 HP @ 1850 RPM
Maximum Torque: 780 N.m @ 1850 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C205-II Industrial Engine

6CTA8.3-C205-II Industrial Engine

Rated Power: 202 HP @ 1850 RPM
Maximum Torque: 780 N.m @ 1850 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C212 Industrial Engine Parts

6CTA8.3-C212 Industrial Engine Parts

Rated Power: 212 HP @ 1900 RPM
Maximum Torque: 908 N.m @ 1500 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C215 Industrial Engine Parts

6CTA8.3-C215 Industrial Engine Parts

Rated Power: 215 HP @ 2200 RPM
Maximum Torque: 693 N.m @ 2200 RPM
Fuel System: Weifu P7100 / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: EPA Tier1

6CTA8.3-C215-I Industrial Engine Parts

6CTA8.3-C215-I Industrial Engine Parts

Rated Power: 215 HP @ 2200 RPM
Maximum Torque: 693 N.m @ 2200 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C215-II Industrial Engine Parts

6CTA8.3-C215-II Industrial Engine Parts

Rated Power: 215 HP @ 2200 RPM
Maximum Torque: 695 N.m @ 2200 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C215-III Industrial Engine Parts

6CTA8.3-C215-III Industrial Engine Parts

Rated Power: 215 HP @ 2200 RPM
Maximum Torque: 695 N.m @ 2200 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C215-IV Industrial Engine

6CTA8.3-C215-IV Industrial Engine

Rated Power: 202 HP @ 1850 RPM
Maximum Torque: 780 N.m @ 1850 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C215-V Industrial Engine Parts

6CTA8.3-C215-V Industrial Engine Parts

Rated Power: 215 HP @ 2200 RPM
Maximum Torque: 684 N.m @ 2200 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C215-VI Industrial Engine Parts

6CTA8.3-C215-VI Industrial Engine Parts

Rated Power: 215 HP @ 2200 RPM
Maximum Torque: 695 N.m @ 2200 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C215-VII Industrial Engine Parts

6CTA8.3-C215-VII Industrial Engine Parts

Rated Power: 215 HP @ 2200 RPM
Maximum Torque: 695 N.m @ 2200 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C215-VIII Industrial Engine Parts

6CTA8.3-C215-VIII Industrial Engine Parts

Rated Power: 215 HP @ 2200 RPM
Maximum Torque: 693 N.m @ 2200 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C230 Industrial Engine Parts

6CTA8.3-C230 Industrial Engine Parts

Rated Power: 230 HP @ 2200 RPM
Maximum Torque: 1000 N.m @ 1500 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: N / A

6CTA8.3-C230-I Industrial Engine Parts

6CTA8.3-C230-I Industrial Engine Parts

Rated Power: 228 HP @ 1850 RPM
Maximum Torque: 878 N.m @ 1850 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C230-II Industrial Engine Parts

6CTA8.3-C230-II Industrial Engine Parts

Rated Power: 231 HP @ 2200 RPM
Maximum Torque: 748 N.m @ 2200 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C230-III Industrial Engine Parts

6CTA8.3-C230-III Industrial Engine Parts

Rated Power: 228 HP @ 1850 RPM
Maximum Torque: 878 N.m @ 1850 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C240 Industrial Engine Parts

6CTA8.3-C240 Industrial Engine Parts

Rated Power: 240 HP @ 2200 RPM
Maximum Torque: 1028 N.m @ 1500 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: EPA Tier1

6CTA8.3-C240-I Industrial Engine Parts

6CTA8.3-C240-I Industrial Engine Parts

Rated Power: 240 HP @ 2200 RPM
Maximum Torque: 782 N.m @ 2200 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C240-II Industrial Engine Parts

6CTA8.3-C240-II Industrial Engine Parts

Rated Power: 240 HP @ 2200 RPM
Maximum Torque: 782 N.m @ 2200 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C260 Industrial Engine Parts

6CTA8.3-C260 Industrial Engine Parts

Rated Power: 260 HP @ 2200 RPM
Maximum Torque: 1135 N.m @ 1500 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: N / A

6CTA8.3-C260-I Industrial Engine Parts

6CTA8.3-C260-I Industrial Engine Parts

Rated Power: 260 HP @ 2200 RPM
Maximum Torque: 842 N.m @ 2200 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C215-IV Industrial Engine

6CTA8.3-C260-II Industrial Engine Parts

Rated Power: 260 HP @ 1900 RPM
Maximum Torque: 975 N.m @ 1900 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-G2 Industrial Engine Parts

6CTA8.3-G2 Industrial Engine Parts

Rated Power: 278 HP @ 1800 RPM
Peak Torque: N / A
Fuel System: Beiyou PB pump / electronic speed regulator
Bore * Stroke: 102 mm * 120 mm
Aspiration: Turbocharged

6CTAA8.3-C145 Industrial Engine

6CTAA8.3-C145 Industrial Engine

Rated Power: 145 HP @ 1900 RPM
Maximum Torque: 542 N.m @ 1900 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTAA8.3-C215 Industrial Engine

6CTAA8.3-C215 Industrial Engine

Rated Power: 215 HP @ 2200 RPM
Maximum Torque: 980 N.m @ 1500 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: SEPA STAGE II

6CTAA8.3-C240 Industrial Engine

6CTAA8.3-C240 Industrial Engine

Rated Power: 240 HP @ 2200 RPM
Maximum Torque: 777 N.m @ 2200 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTAA8.3-C240-II Industrial Engine

6CTAA8.3-C240-II Industrial Engine

Rated Power: 240 HP @ 2000 RPM
Maximum Torque: 858 N.m @ 2000 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTAA8.3-C260 Industrial Engine

6CTAA8.3-C260 Industrial Engine

Rated Power: 260 HP @ 2200 RPM
Maximum Torque: 1100 N.m @ 1400 RPM
Fuel System: BYC P7100 / RSV Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage II

6CTAA8.3-C260-II Industrial Engine

6CTAA8.3-C260-II Industrial Engine

Rated Power: 260 HP @ 2000 RPM
Maximum Torque: 927 N.m @ 2000 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTAA8.3-C280 Industrial Engine

6CTAA8.3-C280 Industrial Engine

Rated Power: 280 HP @ 2200 RPM
Maximum Torque: 1125 N.m @ 1200 RPM
Fuel System: BYC P7100 / RSV Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage II

6CT9.5-C220 Industrial Engine

6CT9.5-C220 Industrial Engine

Rated Power: 217 HP @ 2200 RPM
Maximum Torque: 703 N.m @ 2200 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CT9.5-C220-I Industrial Engine

6CT9.5-C220-I Industrial Engine

Rated Power: 217 HP @ 2000 RPM
Maximum Torque: 774 N.m @ 2000 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

Global Activity

WhatsApp Online logo

Online Service


Sales Manager-Mrs.Wendy Fu

Sales Director-Mr.Jasper Lee

Parts Service-PartMac

Technical Service

Contact EMAC Now!

Subscribe To Our Newsletter

Subscribe to get the latest updates from www.dcec-parts.com

Welcome on board, we will keep you updated with latest news and business activities!

Pin It on Pinterest
