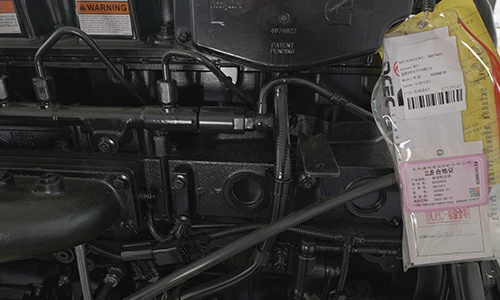

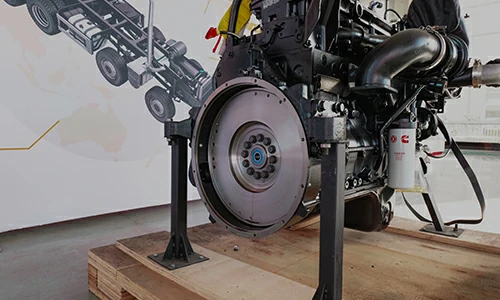

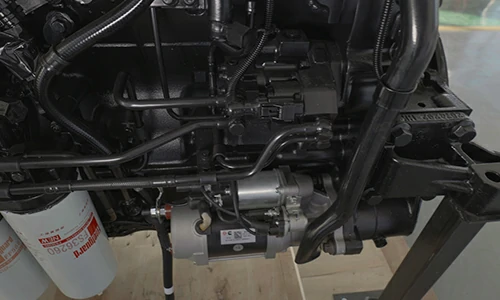

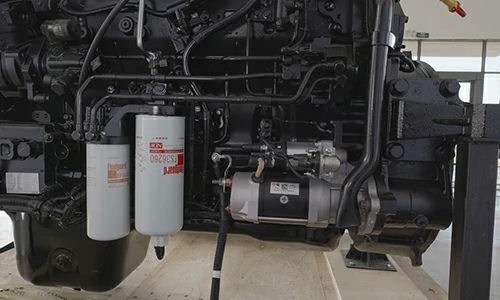

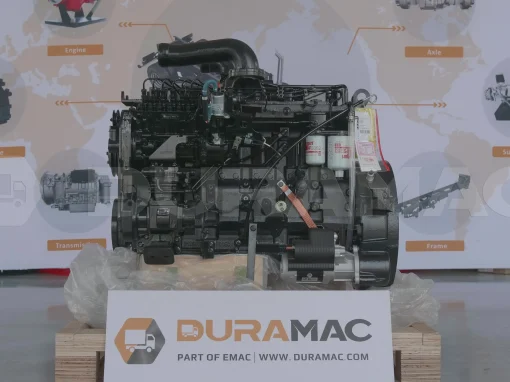

DCEC ISZ13 Automotive Engine
DCEC ISZ13 series automotive engine is a 6-cylinders in line, 13 liter four-strokes engine with 130 mm bore and 163 mm stroke. Equipped with Electrically Control High-pressure Common Rail, engine comes with turbocharger and Air- Air intercooler. The prime power range is from 425 HP to 525 HP.
As part of EMAC, DuraMac provides complete powertrain that integrated with DCEC engine, Fast-Eaton clutch, FAST-CAT transmission, Dongfeng-DANA axle and Komman air suspension, while the electrification of automobile is the certain future, Duramac also get involved with EV powertrain system. We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
DCEC ISZ13 series electronic automotive engine can reach upto EU Stage VI emission standard, the number 30/40/50/60 are the emission standard mark of engine, which means engine emission standard are EU Stage III, IV, V, VI. For different emission standard DCEC ISZ13 electronic series automotive engine, the engine itself are the same, the major different are the after-treatment system and ECU program, EMAC will keep updating products introduction page of different emission standard version engines, welcome to subscribe our website to get latest update information.
If you are in need of engine model that not available on our website for the moment, please contact EMAC sales team for technical details and related documents, our well trained sales and engineering team will help you with all products and techical documents available here at DCEC.
General Specifications of ISZ13 Series
| Engine Type: | 6 Cylinders |
| Displacement: | 13 L |
| Bore * Stroke: |
130 mm * 163 mm |
| Advertised Power: |
425 – 525 HP @ 1900-2100 RPM |
| Peak Torque: |
1966 – 2509 N.m @ 1000 -1600 RPM |
| Rated Speed: | 1900-2100 RPM |
| Emission Standards: |
Euro IV – Euro V |
| Aspiration Method: | Turbocharged & Air Intercooler |
| Weight: | 1192-1205 kg |
| Fuel System: | XPI Fuel System |
| ISZ425 40425 HP | ||||||||
| ISZ425-40A425 HP | ||||||||
| ISZ425-40B425 HP | ||||||||
| ISZ425-41425 HP | ||||||||
| ISZ450 40450 HP | ||||||||
| ISZ450-40A450 HP | ||||||||
| ISZ450-40B450 HP | ||||||||
| ISZ450-41450 HP | ||||||||
| ISZ460-51450 HP | ||||||||
| ISZ480 40480 HP | ||||||||
| ISZ480 41480 HP | ||||||||
| ISZ 520 40520 HP | ||||||||
| ISZ520-41520 HP | ||||||||
| ISZ520 41520 HP | ||||||||
| ISZ 525 40525 HP | ||||||||
| ISZ525-40A525 HP | ||||||||
| ISZ525-40B525 HP | ||||||||
| ISZ525-40C525 HP | ||||||||
|
Engine Model Power/HP |
400 | 420 | 450 | 473 | 480 | 512 | 520 | 525 |
| Emission Srandard:Euro ⅠEuro ⅡEuro ⅢEuro ⅣEuro ⅤEuro ⅥEuro Ⅶ | ||||||||
Engine Model |
Rated Power |
Peak Torque |
Engine Model |
Rated Power |
Peak Torque |
||
| ISZ425 40 | 425 HP @ 2100 RPM | 1966 N.m @ 1200-1500 RPM | ISZ425-40A | 425 HP @ 2100 RPM | 1966 N.m @ 1600 RPM | ||
| ISZ425-40B | 425 HP @ 2100 RPM | 1966 N.m @ 1200 RPM | ISZ425-41 | 425 HP @ 1900 RPM | 2016 N.m @ 1000-1400 RPM | ||
| ISZ450 40 | 450 HP @ 2100 RPM | 2237 N.m @ 1200 RPM | ISZ450-40A | 450 HP @ 2100 RPM | 2237 N.m @ 1600 RPM | ||
| ISZ450-40B | 450 HP @ 2100 RPM | 2237 N.m @ 1200 RPM | ISZ450-41 | 450 HP @ 1900 RPM | 2338 N.m @ 1000-1300 RPM | ||
| ISZ460-51 | 460 HP @ 1900 RPM | 2330 N.m @ 1100-1300 RPM | ISZ480 40 | 480 HP @ 2100 RPM | 2321 N.m @ 1100-1500 RPM | ||
| ISZ480 41 | 480 HP @ 1900 RPM | 2321 N.m @ 1000-1300 RPM | ISZ 520 40 | 520 HP @ 2100 RPM | 2508 N.m @ 1200-1500 RPM | ||
| ISZ520-41 | 520 HP @ 1900 RPM | 2458 N.m @ 1100–1300 RPM | ISZ520 41 | 520 HP @ 1900 RPM | 2458 Nm @ 1100-1300 RPM | ||
| ISZ 525 40 | 525 HP @ 2100 RPM | 2508 N.m @ 1200 RPM | ISZ525-40A | 525 HP @ 2100 RPM | 2509 N.m @ 1600 RPM | ||
| ISZ525-40B | 525 HP @ 2100 RPM | 2508 N.m @ 1200 RPM | ISZ525-40C | 525 HP @ 2100 RPM | 2508 N.m @ 1200 RPM | ||
| ——END—— | |||||||
DCEC ISZ13 Series Automotive Engine
This is the list of all series of DCEC ISZ13 Series Automotive Engine.
Click here to find automotive engines by type (Fuel System & Emission Standard).
ISZ 425 40 Automotive Engine Parts
Rated Power: 425 HP (317 kW) @ 2100 RPM
Max. Torque: 1966 N.m @ 1200 RPM
Fuel System: XPI
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: EURO IV
ISZ425-40A Automotive Engine Parts
Rated Power: 425 HP @ 2100 RPM
Max.Torque: 1966 N.m @ 1600 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air Intercooler
Emission Standard: Euro IV
ISZ425-40B Automotive Engine Parts
Rated Power: 425 HP @ 2100 RPM
Max.Torque: 1966 N.m @ 1200 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air Intercooler
Emission Standard: Euro IV
ISZ 450 40 Automotive Engine
Rated Power: 450 HP (335 kW) @ 2100 RPM
Max. Torque: 2237 N.m@ 1200 RPM
Fuel System: XPI
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: EURO IV
ISZ425-41 Automotive Engine
Rated Power: 425 HP @ 2100 RPM
Max.Torque: 2016 N.m @ 1000-1400 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro IV
ISZ480 40 Automotive Engine
Rated Power: 480 HP @ 2100 RPM
Max. Torque: 2321 N.m @ 1100 RPM~1500 RPM
Fuel System: XPI
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: EURO IV
ISZ450-40A Automotive Engine
Rated Power: 450 HP @ 2100 RPM
Max.Torque: 2237 N.m @ 1600 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air Intercooler
Emission Standard: Euro IV
ISZ480 41 Automotive Engine
Rated Power: 480 HP @ 1900 RPM
Max. Torque: 2321 Nm @ 1000 – 1300 RPM
Fuel System: XPI
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: EURO IV
ISZ450-40B Automotive Engine
Rated Power: 450 HP @ 2100 RPM
Max.Torque: 2237 N.m @ 1200 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro IV
ISZ520 40 Automotive Engine
Rated Power: 520 HP @ 2100 RPM
Max. Torque: 2508 N.m @ 1200-1500 RPM
Fuel System: XPI
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: EURO IV
ISZ450-41 Automotive Engine
Rated Power: 450 HP @ 1900 RPM
Max.Torque: 2338 N.m @ 1000-1300 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro IV
ISZ 525 40 Automotive Engine
Rated Power: 525 HP (392 kW) @ 2100 RPM
Max. Torque: 2508 Nm @ 1200 RPM
Fuel System: XPI
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: EURO IV
ISZ460-51 Automotive Engine
Rated Power: 460 HP @ 1900 RPM
Max.Torque: 2330 N.m @ 1100-1300 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro V
ISZ520 41 Automotive Engine
Rated Power: 512 HP (520 Ps) @ 1900 RPM
Max. Torque: 2458 Nm @ 1100 RPM ~ 1300 RPM
Fuel System: XPI
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: country VI
ISZ520-41 Automotive Engine
Rated Power: 520 HP @ 1900 RPM
Max.Torque: 2458 N.m @ 1100-1300 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro IV
ISZ525-40A Automotive Engine
Rated Power: 525 HP @ 2100 RPM
Max.Torque: 2509 N.m @ 1600 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air Intercooler
Emission Standard: Euro IV
ISZ525-40B Automotive Engine
Rated Power: 525 HP @ 2100 RPM
Max.Torque: 2508 N.m @ 1200 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro IV
ISZ525-40C Automotive Engine
Rated Power: 525 HP @ 2100 RPM
Max.Torque: 2508 N.m @ 1200 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro IV
