DCEC 6CT8.3-GM115 Auxiliary Parts

DCEC 6CTA8.3-GM115 marine auxiliary engine is a 6-cylinders in line, 8.3 liters four-strokes engine with 114mm bore and 135mm stroke.

Equipped with BYC PB fuel pump and GAC electronic governor, engine comes with turbocharger.

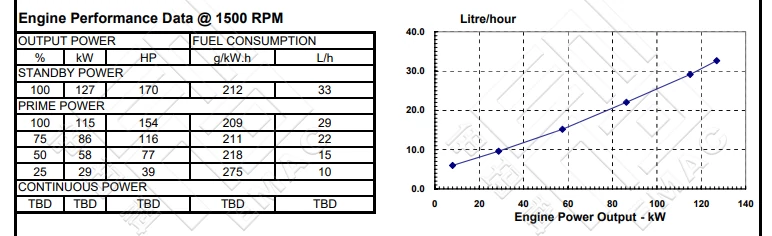

The prime power for generator set 1500RPM of DCEC 6CTA8.3-GM115 marine auxiliary engine is 115kW.

DCEC provides both heat exchanger cooling and radiator cooling marine auxiliary engines, which mainly using for marine main generator and marine emergency generator.

For the emergency generator set applications, we provide additional options for customers such as dual starter motor system (we provide both electric and spring starter motor for customers), which are required by most of international classifications.

All of DCEC marine auxiliary engine are comes with dry type exhaust system, which means dry type exhaust manifold and dry type turbocharger, SeaMac provides upgrading services for water-cooled exhaust system, which modify dry type exhaust system into water-cooled exhaust system, which are quite important and often requested by passenger boat projects.

Advantages of DCEC 6CT8.3-GM115 Auxiliary Parts

  • Advanced design, exquisite manufacturing technology, reliable and durable, suitable for high-strength and heavy-duty operations under severe working conditions.

  • Using high-pressure fuel pump, combustion is more complete under high fuel injection pressure, less energy loss, strong power, strong fuel adaptability, and lower emissions.

  • Adopt Holset supercharger with integral wastegate valve, low speed responsiveness and strong power.

  • Integral cylinder design, the number of parts is about 25% less than similar products, the failure rate is lower, and the maintenance is more convenient.

  • The cylinder liner adopts a platform mesh honing design and a corrosion-resistant high-nickel cast iron piston, which greatly reduces oil loss, enhances durability, and has a longer service life.

Technical Specifications

Advantages of DCEC 6CT8.3-GM115 Auxiliary Parts

Engine Model: 6CT8.3-GM115
Engine Type: 6 Cylinders
Displacement: 8.3 L
Rated Speed: 1500 RPM
Aspiration Method: Turbocharged
Emission Standard: N/A
Bore*Storke: 114 mm × 135 mm
Packing Size(L*W*H): 1494 mm * 796 mm * 1228 mm
Weight , Net Dry: 637 kg
Lead Time: 15-30 Working Days
Payment Terms: T/T ,L/C
CCEC-KTA50-Industrial-Engine-

Search by Part No. or Part Name

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ CLEANER,AIR

CLEANER,AIR

NO Part No Part Name QTY REMARKS
1 3281238 CLEANER,AIR 1
2 3281239 CAP,AIR CLEANER 1
3 C140311 CLAMP,T BOLT 1
4 C3030788 HOSE,HUMP 1
5 C3281232 BRACKET,AIR CLEANER 1
6 C3281240 STRAP,AIR CLEANER 2
7 C3415548 CLAMP,T BOLT 2
8 C3900630 Screw,Hex flange headcap 4
9 C3903990 SCREW,HEX FLANGE HEAD 2
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ INDICATOR,AIR RESTRIC

INDICATOR,AIR RESTRIC

NO Part No Part Name QTY REMARKS
1 178957 INDICATOR,RESTRICTION 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ APPROVAL,AGENCY

APPROVAL,AGENCY

NO Part No Part Name QTY REMARKS
1 C3415394 SCREW,DRIVE 2
2 C4992259 DATAPLATE 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ FOLLOWER,CAM

FOLLOWER,CAM

NO Part No Part Name QTY REMARKS
1 C3931623 TAPPET,VALVE 12
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ COVER,FRONT GEAR

COVER,FRONT GEAR

NO Part No Part Name QTY REMARKS
1 3926721 HOUSING,GEAR 1
2 3938737 GASKET,GEAR HOUSING 1
3 C3907998 SCREW,ROUND HEAD CAP 2
4 C3913995 HOUSING,TIMING PIN 1
5 C3903924 PIN,TIMING 1
6 C3904849 RING,RETAINING 1
7 C3913994 SEAL,O RING 1
8 C3919683 HOUSING,TIMING PIN 1
9 C3915772 SEAL,RECTANGLE 1
10 C3925883 SCREW,HEX FLANGE HEAD 16
11 C3926840 COVER,GEAR 1
12 C3925230 COVER,GEAR 1
13 C3968562 SEAL,OIL 1
14 C3926846 SCREW,HEX FLANGE HEAD CA 5
15 C3926863 SCREW,HEX FLANGE HEAD CA 6
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ LEVER,ROCKER

LEVER,ROCKER

NO Part No Part Name QTY REMARKS
1 C3905194 ROD,PUSH 12
2 C3919677 MANIFOLD,OIL 1
3 C3934921 LEVER,ROCKER 6
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ BLOCK,ENGINE

BLOCK,ENGINE

NO Part No Part Name QTY REMARKS
1 3968609 BLOCK,CYLINDER 1
2 3971411 BLOCK,CYLINDER 1
3 C3920706 PLUG,EXPANSION 1
4 C156075 PLUG,EXPANSION 2
5 C3008465 PLUG,PIPE 6
6 C3008468 PLUG,PIPE 5
7 C3008469 PLUG,PIPE 2
8 C3008470 PLUG,PIPE 1
9 C3900257 DOWEL, PIN 2
10 C3901846 DOWEL,PIN 4
11 C3901969 PLUG,EXPANSION 1
12 C3907177 SEAL,RECTANGULAR 6
13 C3904483 DOWEL, PIN 1
14 C3917320 CRANKSHAFT,ENGINE 1
15 C3918776 GEAR,CRANKSHAFT 1
16 C3926048 SEAL,O RING 1
17 C3928031 NOZZLE,PISTON COOLING 12
18 C3944153 BEARING,MAIN 7
19 C3944158 BEARING,MAIN 6
20 C3944163 BEARING,THRUST 1
21 C3948095 LINER,CYLINDER 6
22 CS 923 E DRAINCOCK 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ BREATHER,CRANKCASE

BREATHER,CRANKCASE

NO Part No Part Name QTY REMARKS
1 C3901249 SCREW,HEX FLANGE HEAD 1
2 C3907741 CLIP 1
3 C3909669 TUBE,BREATHER 1
4 C3912072 SCREW,SELF TAPPING MET 1
5 C3918616 HOSE,PLAIN 1
6 C3930827 HOSE,PLAIN 1
7 C3935113 CONNECTION,VENT 1
8 C3936331 SEAL,RECTANGULAR RING 1
9 C5255180 CLAMP,SPRING HOSE 1
10 C70622 CLIP 1
11 D3937613 CLAMP,HOSE 2
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ DAMPER,VIBRATION

DAMPER,VIBRATION

NO Part No Part Name QTY REMARKS
1 3925568 DAMPER,VIBRATION 1
2 C3906733 SCREW,HEX FLANGE HEAD 4
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ DRIVE,FRT GR TR ACCES

DRIVE,FRT GR TR ACCES

NO Part No Part Name QTY REMARKS
1 C3901249 SCREW,HEX FLANGE HEAD 2
2 C3938655 GASKET,ACC DRIVE COVE 1
3 C4942479 PLATE,COVER 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ LOCATION,FUEL DRAIN

LOCATION,FUEL DRAIN

NO Part No Part Name QTY REMARKS
1 C3863988 WASHER,SEALING 2
2 C3933359 SCREW,BANJO CONNECTOR 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ THERMOSTAT

THERMOSTAT

NO Part No Part Name QTY REMARKS
1 C3928639 THERMOSTAT 2
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ ALTERNATOR

ALTERNATOR

NO Part No Part Name QTY REMARKS
1 C3415351 ALTERNATOR 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ PANEL,ENGINE INSTRUME

PANEL,ENGINE INSTRUME

NO Part No Part Name QTY REMARKS
1 3916302 SWITCH, MAGNETIC 1
2 C3068915 BRACKET,MAGNETIC SWIT 1
3 C3906216 NUT,HEXAGON FLANGE 2
4 C3913638 SCREW,HEX FLANGE HEAD CA 2
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ WIRE TAPPING

WIRE TAPPING

NO Part No Part Name QTY REMARKS
1 C3903990 SCREW,HEX FLANGE HEAD 1
2 C4932506 WIRE,GROUND 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ LOCATION,ALTERNATOR

LOCATION,ALTERNATOR

NO Part No Part Name QTY REMARKS
1 C3900631 SCREW,HEX FLANGE HEAD 4
2 C3901249 SCREW,HEX FLANGE HEAD 1
3 C3913345 BRACE,ALTERNATOR 1
4 C3920447 SCREW,HEX FLANGE HEAD CA 2
5 C3929418 SUPPORT,ALTERNATOR 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ DRIVE,ALTERNATOR

DRIVE,ALTERNATOR

NO Part No Part Name QTY REMARKS
1 C3282081 SCREW,HEX FLANGE HEAD 1
2 C3911563 BELT,V RIBBED 1
3 C3919471 BRACKET,BELT TENSIONER 1
4 C3925186 SCREW,FLAT HEAD CAP 2
5 C3937553 TENSIONER,BELT 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ DRIVE,MECH TACH

DRIVE,MECH TACH

NO Part No Part Name QTY REMARKS
1 C3903463 COVER,ACCESS HOLE 1
2 C3903475 SEAL,RECTANGLE 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ SUPPORT,FRONT ENGINE

SUPPORT,FRONT ENGINE

NO Part No Part Name QTY REMARKS
1 C3415321 SUPPORT,ENGINE 1
2 C3902451 SCREW,HEX FLANGE HEAD 4
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ DRIVE,FAN

DRIVE,FAN

NO Part No Part Name QTY REMARKS
1 C3415603 SUPPORT,FAN 1
2 C3914462 PULLEY,FAN 1
3 C3925402 SCREW,HEX FLANGE HEAD 4
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ MOUNTING,FAN DRIVE

MOUNTING,FAN DRIVE

NO Part No Part Name QTY REMARKS
1 C3903990 SCREW,HEX FLANGE HEAD 4
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ FILTER,FUEL

FILTER,FUEL

NO Part No Part Name QTY REMARKS
1 C3903293 NUT,HEX FLANGE 1
2 C3906694 SEAL,RECTANGLE 1
3 C3906695 SEAL,RECTANGLE 1
4 C3925955 ADAPTER,FILTER HEAD 1
5 C3930942 FILTER,FUEL 1
6 C3931063 FILTER,FUEL 1
7 C4934663 HEAD,FUEL FILTER 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ PLUMBING,FUEL FILTER

PLUMBING,FUEL FILTER

NO Part No Part Name QTY REMARKS
1 C3863988 WASHER,SEALING 1
2 C3905860 SCREW,BANJO CONNECTOR 1
3 C3911446 SCREW,BANJO CONNECTOR 1
4 C3939570 Screw,Captive washer cap 1
5 C3912923 TUBE,FUEL SUPPLY 1
6 C3918192 WASHER,SEALING 1
7 C3924725 SCREW,BANJO CONNECTOR 1
8 C3963983 WASHER,SEALING 2
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ HOUSING,FLYWHEEL

HOUSING,FLYWHEEL

NO Part No Part Name QTY REMARKS
1 C3008469 PLUG,PIPE 1
2 C3357700 COVER,REAR 1
3 C3933384 COVER,REAR 1
4 C3968563 SEAL,OIL 1
5 C3415320 HOUSING,FLYWHEEL 1
6 C3900629 SCREW,HEX FLANGE HEAD 2
7 C3908095 Plate,Cover 1
8 C3910248 PLUG,O RING 1
9 C3910260 SEAL,O RING 1
10 C3912473 SEAL,RECTANGULAR RING 1
11 C3920447 SCREW,HEX FLANGE HEAD CA 12
12 C3928989 CLIP 1
13 C3939353 GASKET,REAR COVER 1
14 C3991306 SCREW HEX FLANGE HEAD 8
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ COUPLING,FUEL PUMP

COUPLING,FUEL PUMP

NO Part No Part Name QTY REMARKS
1 3935032 SEAL,RECTANGULAR RING 1
2 C3282372 STUD 4
3 C3415412 GEAR,FUEL PUMP 1
4 C3916284 SEAL,O RING 1
5 C4988581 NUT,HEXAGON FLANGE 4
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ PUMP,BASE FUEL

PUMP,BASE FUEL

NO Part No Part Name QTY REMARKS
1 C3415612 PUMP,FUEL INJECTION 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ ACCESSORIES,FUEL SYST

ACCESSORIES,FUEL SYST

NO Part No Part Name QTY REMARKS
1 C3415661 PUMP,FUEL TRANSFER 1
2 C3909310 SCREW,HEX FLANGE HEAD 2
3 C3916361 SCREW,BANJO CONNECTOR 1
4 C3918539 TUBE,FUEL SUPPLY 1
5 C3939258 GASKET,COVER PLATE 1
6 C3963983 WASHER,SEALING 2
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ PLUMBING,FUEL

PLUMBING,FUEL

NO Part No Part Name QTY REMARKS
1 3930720 TUBE,INJECTOR 1
2 C3282059 CLIP 1
3 C3903380 SEAL,BANJO CONNECTOR 6
4 C3905307 SCREW,BANJO CONNECTOR 6
5 C3918188 WASHER,SEALING 2
6 C3920595 MANIFOLD,FUEL 1
7 C3924726 VALVE,CHECK 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ VALVE,FUEL SHUTOFF

VALVE,FUEL SHUTOFF

NO Part No Part Name QTY REMARKS
1 3923254 BRACKET,SOLENOID 1
2 3928161 SOLENOID,FUEL PUMP 1
3 C3903990 SCREW,HEX FLANGE HEAD 2
4 C3913638 SCREW,HEX FLANGE HEAD CA 2
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ FLYWHEEL

FLYWHEEL

NO Part No Part Name QTY REMARKS
1 C3415350 FLYWHEEL 1
2 C3900269 Washer,Plain 4
3 C3900269 Washer,Plain 4
4 C3977274 SCREW,HEXAGON HEAD CAP 4
5 C3977274 SCREW,HEXAGON HEAD CAP 4
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ BRACKET,LIFTING

BRACKET,LIFTING

NO Part No Part Name QTY REMARKS
1 C3901249 SCREW,HEX FLANGE HEAD 2
2 C3906440 BRACKET,LIFTING 1
3 C3907861 BRACKET,LIFTING 1
4 C4991876 SCREW,HEXAGON HEAD CAP 2
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ LABELING,ENGINE

LABELING,ENGINE

NO Part No Part Name QTY REMARKS
1 C3415352 DECAL 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ Labeling Engine

Labeling Engine

NO Part No Part Name QTY REMARKS
1 C3974406 TAG,IDENTIFICATI 1
2 C3975443 COVER,PROTECTIVE 1
3 C4983154 TAG 1
4 C4983155 DECAL 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ COOLER,ENGINE OIL

COOLER,ENGINE OIL

NO Part No Part Name QTY REMARKS
1 C3401544 ELEMENT,LUB OIL FILTER 1
2 C3918174 GASKET,OIL COOLER CORE 1
3 C3929011 GASKET,LUB OIL CLR COV 1
4 C3966976 SCREW,HEX FLANGE HEAD 11
5 C3974815 CORE,COOLER 1
6 C4936396 HEAD,LUB OIL FILTER 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ GAUGE,OIL LEVER

GAUGE,OIL LEVER

NO Part No Part Name QTY REMARKS
1 C3279104 TUBE,OIL GAUGE 1
2 C3900955 PLUG,EXPANSION 1
3 C3908772 DIPSTICK 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ PUMP,LUBRICATING OIL

PUMP,LUBRICATING OIL

NO Part No Part Name QTY REMARKS
1 C3415365 PUMP,LUBRICATING OIL 1
2 C3900677 SCREW,HEXAGON HEAD CAP 4
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ COVER,CYLINDER BLOCK

COVER,CYLINDER BLOCK

NO Part No Part Name QTY REMARKS
1 C3905401 PLUG,EXPANSION 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ PAN,OIL

PAN,OIL

NO Part No Part Name QTY REMARKS
1 C3900628 SCREW,HEX FLANGE HEAD 2
2 C3901865 SCREW,HEX FLANGE HEAD CA 1
3 C3902425 SEALING WASHER 1
4 C3906216 NUT,HEXAGON FLANGE 1
5 C3907860 SCREW,HEX FLANGE HEAD CA 16
6 C3910960 PLAIN WASHER 1
7 C3913638 SCREW,HEX FLANGE HEAD CA 2
8 C3914013 PAN,OIL 1
9 C3920400 SCREW,HEX FLANGE HEAD CA 16
10 C3920773 WASHER,SEALING 1
11 C3924147 PLUG,THREADED 1
12 C3924148 PLUG,THREADED 1
13 C3926865 SPACER,MOUNTING 2
14 C3927611 BRACE,TUBE 1
15 C3928828 CONNECTION,OIL SUCTIO 1
16 C3939352 GASKET,OIL SUC CONNECT 1
17 C3965800 PLATE,CLAMPING 4
18 C3973509 GASKET,OIL PAN 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ PERFORMANCE

PERFORMANCE

NO Part No Part Name QTY REMARKS
1 3928238 INJECTOR 1
2 C3909886 SEAL,INJECTOR 6
3 C3910279 CLAMP,INJECTOR 6
4 C4991526 SCREW,HEX FLANGE HEAD CA 6
5 D3928228 INJECTOR 6
6 3929385 PISTION,ENGINE 1
7 C3901383 ROD,ENGINE CONNECTING 6
8 C3919918 RING,COMPRESSION PISTO 6
9 C3920692 RING,RETAINING 12
10 C3921919 RING,OIL PISTON 6
11 C3922686 RING,COMPRESSION PISTO 6
12 C3929161 PISTON,ENGINE 6
13 C3934046 PIN,PISTON 6
14 C3950661 BEARING,CONNECTING ROD 12
15 C3935715 CAMSHAFT 1
16 C3900227 SCREW,HEXGON HEAD CAP 2
17 C3902332 KEY,PLAIN WOODRUFF 1
18 C3918777 GEAR,CAMSHAFT 1
19 C3923478 CAMSHAFT 1
20 C3927155 SUPPORT,CAMSHAFT THRUST 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ HEAD,CYLINDER

HEAD,CYLINDER

NO Part No Part Name QTY REMARKS
1 C3008464 PLUG,PIPE 1
2 C3008466 PLUG,PIPE 1
3 C3008468 PLUG,PIPE 1
4 C3902425 SEALING WASHER 2
5 C3917729 SCREW,HEX FLANGE HEAD 12
6 C3922041 HEAD,CYLINDER 1
7 C3912900 PLUG ,EXPANSION 1
8 3901177 COLLET,VALVE 24
9 C3912976 RETAINER,VALVE SPRING 12
10 C3916588 SPRING,VALVE 6
11 C3921444 VALVE ,EXHAUST 6
12 C3924492 VALVE,INTAKE 6
13 C3927642 SEAL,VALVE STEM 12
14 C3936180 HEAD,CYLINDER 1
15 3908830 INSERT,VALVE 6
16 3925863 GUIDE,VALVE STEM 12
17 3928174 INSERT,VALVE 6
18 C3900965 PLUG,EXPANSION 2
19 C3914035 PLUG,EXPANSION 5
20 C3920443 PLUG,EXPANSION 1
21 c3991085 SPRING,VALVE 6
22 C3924148 PLUG,THREADED 2
23 C3960043 SCREW,HEX FLANGE HEAD 14
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ TURBOCHARGER

TURBOCHARGER

NO Part No Part Name QTY REMARKS
1 C3755843 GASKET,TURBOCHARGER 1
2 C3818823 STUD 4
3 C3818824 NUT,HEXAGON FLANGE 4
4 D3595508 TURBOCHARGER 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ MOUNTING,CYLINDER HEA

MOUNTING,CYLINDER HEA

NO Part No Part Name QTY REMARKS
1 C3415501 GASKET,CYLINDER HEAD 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ MOUNTING,STARTER

MOUNTING,STARTER

NO Part No Part Name QTY REMARKS
1 C3968466 SCREW,TWELVE POINT 3
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ KIT,ENGINE INSTALLATION

KIT,ENGINE INSTALLATION

NO Part No Part Name QTY REMARKS
1 C3415478 PLUG,ORIFICE 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ MOTOR,STARTING

MOTOR,STARTING

NO Part No Part Name QTY REMARKS
1 C3415325 MOTOR,STARTING 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ GASKET,EXHAUST

GASKET,EXHAUST

NO Part No Part Name QTY REMARKS
1 C3929012 GASKET,EXHAUST MANIFOL 6
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ MANIFOLD,EXHAUST

MANIFOLD,EXHAUST

NO Part No Part Name QTY REMARKS
1 C3906741 MANIFOLD,EXHAUST 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ LOCATION,TURBOCHARGER

LOCATION,TURBOCHARGER

NO Part No Part Name QTY REMARKS
1 3906742 TUBE,AIR 1
2 C3008468 PLUG,PIPE 1
3 C3914708 LOCKPLATE 12
4 C3922648 COVER,TUBE INTAKE 1
5 C3929537 SCREW,HEX HEAD CAP 12
6 C3970407 HOSE,PLAIN 2
7 C3978993 CLAMP,T BOLT 4
8 C4928933 SCREW,HEX FLANGE HEAD 16
9 C4928933 SCREW,HEX FLANGE HEAD 2
10 D3936993 GASKET,INT MANIFOLD 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ HOUSING,THERMOSTAT

HOUSING,THERMOSTAT

NO Part No Part Name QTY REMARKS
1 C206963 ADAPTER,FILTER HEAD 1
2 C3818885 SEAL,O RING 1
3 C3900625 SCREW, HEXFLA 1
4 C3912837 SHAFT,SHUTOFF VALVE 1
5 C3914310 GASKET,THERMOSTAT HOUSIN 1
6 C3926509 HOUSING,THERMOSTAT 1
7 C4991526 SCREW,HEX FLANGE HEAD CA 2
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ TOOL, SEVICE

TOOL, SEVICE

NO Part No Part Name QTY REMARKS
1 C4996943 TOOL,SERVICE 1
2 C4996951 BAG,SERVICE TOOL 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ PLUMBING,TURBOCHARGER

PLUMBING,TURBOCHARGER

NO Part No Part Name QTY REMARKS
1 C3415347 CONNECTOR,FEMALE 2
2 C3037236 SEAL,O RING 1
3 C3415328 CONNECTOR,FEMALE 1
4 C3415471 HOSE,FLEXIBLE 1
5 C3900630 Screw,Hex flange headcap 2
6 C3924389 WASHER,SEALING 2
7 C3928629 CONNECTION,TUR OIL 1
8 C3926842 CONNECTION,TUBE OIL 1
9 C3928624 SEAL,O RING 2
10 C3937706 GASKET,OIL DRAIN 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ COVER,VALVE

COVER,VALVE

NO Part No Part Name QTY REMARKS
1 C3902466 SEAL,RECTANGLE 1
2 c3902468 CAP,FILLER 1
3 C3905449 SEAL,ROCKER LEVER COVER 1
4 C3910824 SEAL,O RING 6
5 C3922639 SCREW,HEX HEAD CAP 6
6 C3930903 COVER,VALVE 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ RESISTOR,CORROSION

RESISTOR,CORROSION

NO Part No Part Name QTY REMARKS
1 C4058964 RESISTOR,CORROSION 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ VENT,ENGINE COOLANT

VENT,ENGINE COOLANT

NO Part No Part Name QTY REMARKS
1 C3415326 ELBOW,MALE ADAPTER 1
2 C3415332 CONNECTOR,MALE 1
3 C3415380 TUBE,VENT 1
4 C3906619 PLUG, PIPE 1
5 C3974262 VALVE,CHECK 1
6 C3911901 VALVE,CHECK 1
7 C3911925 COUPLING,PLAIN HOSE 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ CONNECTION,WATER INLET

CONNECTION,WATER INLET

NO Part No Part Name QTY REMARKS
1 C3415557 CLAMP,HOSE 1
2 C3415558 CLAMP,HOSE 1
3 C3907208 TUBE,WATER INLET 1
4 C3920762 HOSE,ELBOW 1
5 C3925883 SCREW,HEX FLANGE HEAD 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ CONNECTION,WATER OUTL

CONNECTION,WATER OUTL

NO Part No Part Name QTY REMARKS
1 C3906715 SCREW,HEX FLANGE HEAD CA 2
2 C3918779 GASKET,CONNECTION 1
5 C3924591 CONNECTION,WATER OUTLE 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ PUMP,WATER

PUMP,WATER

NO Part No Part Name QTY REMARKS
1 C3093730 SCREW,HEX FLANGE HEAD 3
2 C3415366 PUMP,WATER 1
3 C3902089 SEAL,O RING 1
——END——

DCEC 6CT8.3-GM115 Auxiliary Engine Parts ------ CONNECTOR,TUBO EXHAUS

CONNECTOR,TUBO EXHAUS

NO Part No Part Name QTY REMARKS
1 C3008466 PLUG,PIPE 1
2 C3415546 CLAMP,V BAND 1
3 C3902460 SCREW,HEX FLANGE HEAD 4
4 C3910994 PIPE,EXHAUST OUTLET 1
5 C3917923 SUPPORT,MOUNTING 1
——END——

Usual Question

What are the advantages of Cummins spare parts?

  • The quality of parts may not be comparable to Cummins original parts. These parts are produced by different manufacturers and quality controls and standards may differ. Using low-quality parts can result in equipment failure, reduced performance, or shortened equipment life.
  • Parts may not exactly match the design of Cummins equipment, causing installation difficulties or improper function. This may affect the performance, reliability and safety of the device.
  • Parts may violate Cummins warranty. Cummins typically only warrants its original parts. If the use of non-original parts causes equipment failure, you may not be eligible for Cummins warranty support.
  • The supply chain of parts may be unstable, making it difficult to ensure reliable supply of parts. This can lead to delays in repairs or inability to obtain needed parts in a timely manner.

How do we accurately purchase parts?

  • You can obtain the Cummins parts that need to be identified through the equipment manual, Cummins official website or contacting Cummins authorized partners.
  • If the required parts have been identified, you need to confirm the part model and specifications. This information can usually be found in the equipment instructions or parts manual.
  • Before buying new parts, you can check the condition of existing parts. This can help you confirm the model and specification of the part you need and avoid purchasing the wrong part.
  • Before purchasing Cummins parts, you need to provide necessary information, such as equipment model, part model and quantity, etc. This helps suppliers serve you better.
  • After confirming the required parts quantity, you can contact us on WhatsApp.
WhatsApp Online logo

Sales Team


Generator Engine - Miss. Stella Zhang

Marine Engine - Mrs. Hailey Tang

Automotive Engine - Mr. Kevin Liu

Industrial Engine - Miss. Serena Zhang

Pump Engine - Mr. Joie Zeng

Engine Parts - Mr. Placido Yu

Sales Director - Mr. Jasper Lee

Service Team


Technical Service - Mr. Vin Hu

Customer Service - Mrs. Wendy Fu

Contact EMAC Now!

Subscribe To Our Newsletter

Subscribe To Our Newsletter

Subscribe to get the latest updates from www.dcec-parts.com

You have Successfully Subscribed!

Pin It on Pinterest
