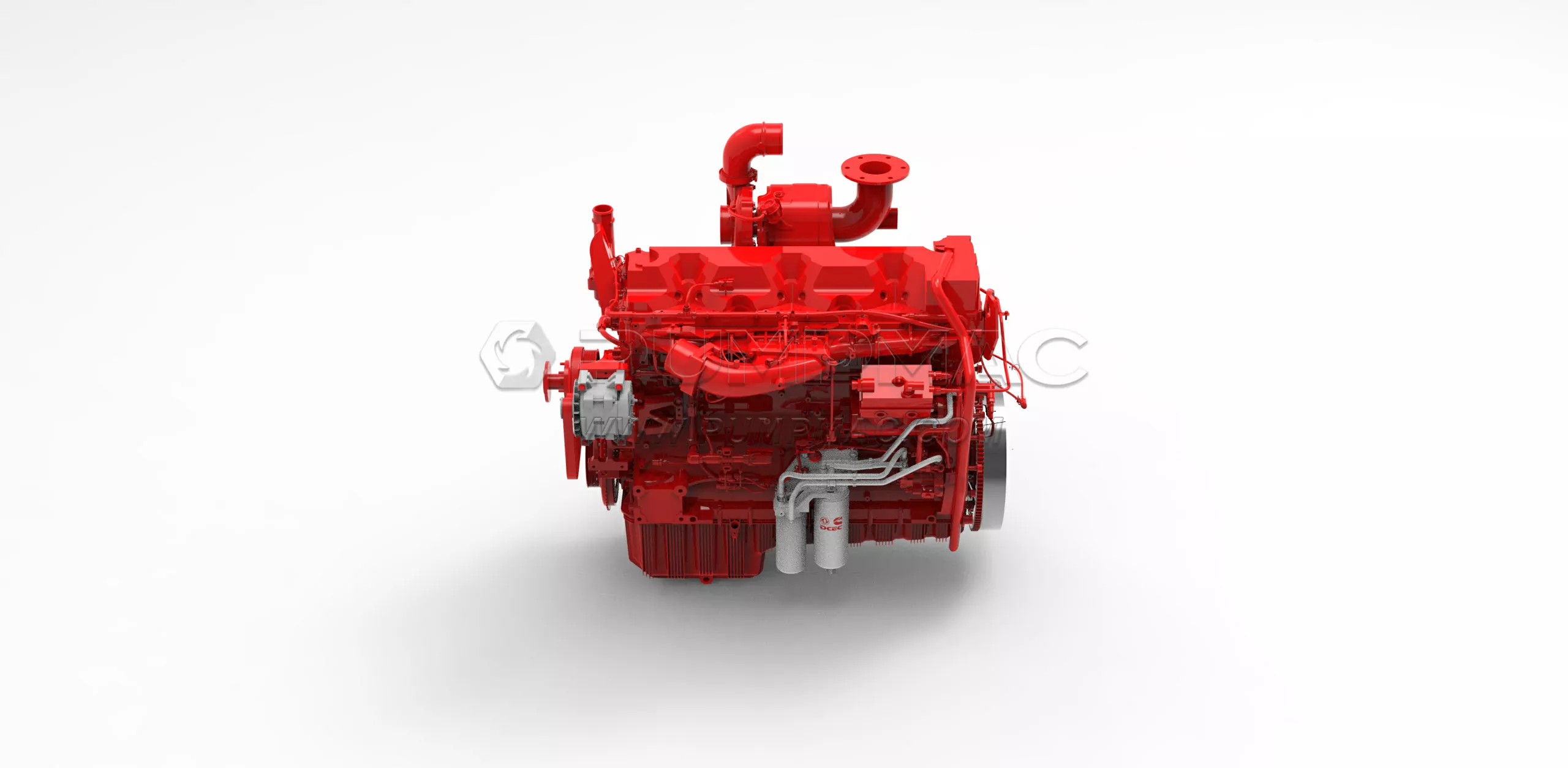

DCEC QSZ14-FP Pump Drive Engine

DCEC QSZ14-FP series pump drive engine is a 6-cylinders in line, 15 liters four-strokes engine with 107 mm bore and 124 mm stroke. DCEC M15CS4 series pump drive engine equipped with Electrically Control High-pressure Common Rail.

The prime power range of DCEC QSZ14-FP series pump drive engine is from 460 kW to 560 kW.

As part of EMAC, PumpMac provides abundant premium pump-driven power pack options, WPT PTO, Advance gearbox and pump head, as well as customized water pump set. We also have a set of NFPA20 standard engine power pack accessories including air intake shut-off valve, DC contactor, engine control panel, jacket water heater etc. We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.

DCEC QSZ14-FP series electronic pump drive engine can reach upto EU Stage V emission standard, the number 30/40/50 are the emission standard mark of engine, which means engine emission standard are EU Stage III, IV, V. For different emission standard DCEC M15CS4 series electronic pump drive engine, the engine itself are the same, the major different of different emission standard engine models are the after-treatment system and ECU program, EMAC will keep updating products introduction page of different emission standard engine models, welcome to subscribe our website to get latest update information.

If you are in need of engine model that not available on our website for the moment, please contact EMAC sales team for technical details and related documents, our well trained sales and engineering team will help you with all products and techical documents available here at DCEC.

Coming Soon

Coming Soon

General Specifications of QSZ14-FP Series

Engine Type: 6 Cylinders
Displacement: 13.48 L
Rated Speed: 2100 RPM
Rated Power / Speed: 338 – 412 kW @ 2100 RPM
Peak Torque: 2215 – 2400 N.m @ 1500 RPM
Fuel System: HPCR
Aspiration Method: Turbocharged & Charge Air Cooled
Bore * Stroke: N/A
Basic Engine(L * W * H): N/A
Wet Weight: N/A
DCEC QSZ14-FP Pump Engine Catalogue

Engine Model

Rated Power

Peak Torque

Engine Model

Rated Power

Peak Torque

QSZ14-460-30-FP 338 kW @ 2100 RPM 2215 N.m @1500 RPM QSZ14-490-30-FP 360 kW @ 2100 RPM 2200 N.m @1500 RPM
QSZ14-540-30-FP 397 kW @ 2100 RPM 2400 N.m @1500 RPM QSZ14-560-30-FP 412 kW @ 2100 RPM 2400 N.m @1500 RPM
QSZ14-560-31-FP 412 kW @ 2100 RPM 2400 N.m @1500 RPM
——END——

DCEC QSZ14-FP Series Pump Drive Engine

This list including all models of DCEC QSZ14-FP Series Pump Drive Engine.
Click here to find pump engines by type (Fuel System & Engine Speed).
