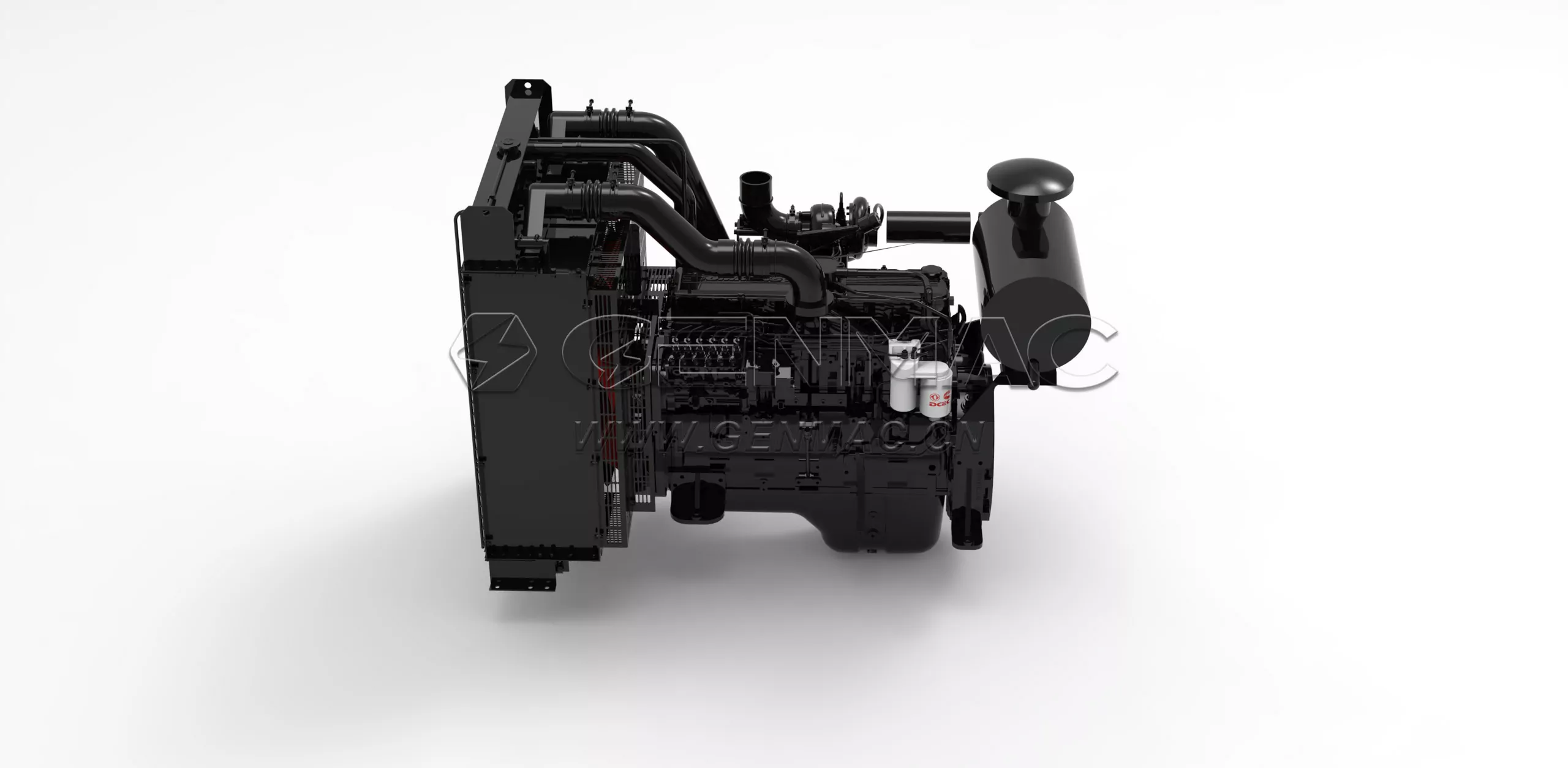

DCEC 6LTAA8.9 Generator Drive Engine

DCEC 6LTAA8.9 series generator drive engine is a 6-cylinders in line,8.9 liter four-strokes engine with 114 mm bore and 145 mm stroke. DCEC 6LTAA8.9 series generator drive engine equipped with BYC fuel pump and provides both mechanical governor and electronic governor for customers to choose from.
The prime power range for 50 Hz generator set (1500 RPM) of DCEC 6LTAA8.9 series generator drive engine is from 220 kW to 230 kW. The prime power range for 60 Hz generator set (1800 RPM) of DCEC 6LTAA8.9 series generator drive engine is from 235 kW to 255 kW.
DCEC generator drive engines have different configurations which have different power output, with code T in the engine model name means turbocharged engine, code TA in the engine model means turbocharge with water-air intercooler and code TAA in the engine model means turbocharge with air-air intercooler. As part of EMAC, SinoGen also provide complete power supply solutions that powered by DCEC, our ranges of products including open type generator set, silence type generator set, super silence type generator set, mobile trailer, complete power truck and complete power car for railways applications. We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.

General Specifications of 6LTAA8.9 Series

Engine Type: 6 Cylinders
Displacement: 8.9 L
Rated Speed: 1500 – 1800 RPM
Aspiration Method: Turbocharged & Air-Air Intercooler
Prime Power: 220 – 255 kW @ 1500 – 1800 RPM
Fuel System: Direct injection
Emission Standard:  Euro III
Wet Weight: 432 kg
Bore * Stroke: 102 mm * 120 mm
Packing Size(L * W * H): 1080 mm * 625 mm * 1085 mm
DCEC 6LTAA8.9 G – Drive Engine Catalogue

Engine Model

Prime Power

Governor Type

Engine Model

Prime Power

Governor Type

6LTAA8.9-G2-A 220 kW @ 1500 RPM GAC Electronic Governor 6LTAA8.9-G2-B 235 kW @ 1800 RPM GAC Electronic Governor
6LTAA8.9-G3-A 230 kW @ 1500 RPM Electronic Governor 6LTAA8.9-G3-B 255 kW @ 1800 RPM  Electronic Governor
——END——

DCEC 6LTAA8.9 Series G-drive Engine

All models of DCEC 6LTAA8.9 Series G-drive Engine.
Click here to find G-drive engines by type (Fuel System & Engine Speed).

6LTAA8.9-G2-A G-Drive Engine Parts

6LTAA8.9-G2-A G-Drive Engine Parts

Rated Power: 220 kW @ 1500RPM
Fuel Pump: BYC P7100 Pump
Governor: GAC Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

6LTAA8.9-G2-B G-Drive Engine Parts

6LTAA8.9-G2-B G-Drive Engine Parts

Rated Power: 235 kW @ 1500RPM
Fuel Pump: BYC P7100 Pump
Governor: Elec.
Aspiration: Turbocharged & Air-Air Intercooler
Emission Standard: N/A

6LTAA8.9-G3-A G-Drive Engine

6LTAA8.9-G3-A G-Drive Engine

Rated Power: 230 kW @ 1500RPM
Fuel Pump: BYC P7100 Pump
Governor: Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

6LTAA8.9-G3-B G-Drive Engine

6LTAA8.9-G3-B G-Drive Engine

Rated Power: 255 kW @ 1500RPM
Fuel Pump: BYC P7100 Pump
Governor: Elec.
Aspiration: Turbocharged & Air-Air Intercooler
Emission Standard: N/A
